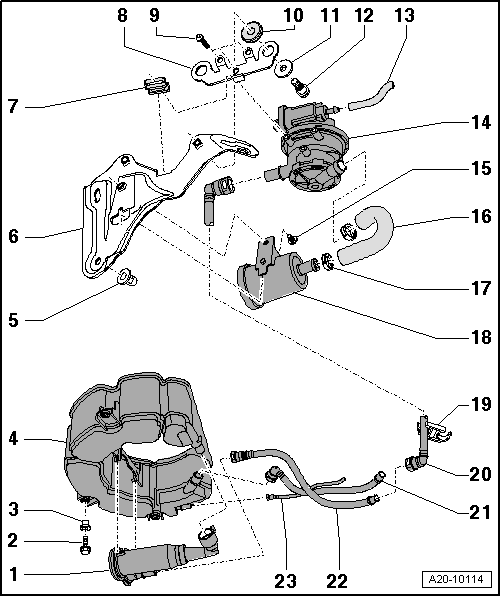

EVAP System Component Overview
WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.
- Evaporative Emission (EVAP) Filter
- Installed only on vehicles with engine code CBUA.
- Bolt
- 8 Nm
- Bushing
- EVAP Canister
- Installed location: on the bottom of the spare tire wheel well.
- Removing and installing, refer to EVAP CANISTER .
- Nut
- 6 Nm
- Bracket
- Mount
- Bracket
- Bolt
- 4 Nm
- Rubber Grommet
- Washer
- Bolt
- 8 Nm
- Vent Line
- To the engine.
- Leak Detection Pump -V144-
- Installed location: Under the liner in right rear wheel housing.
- Checking, refer to the vehicle diagnostic tester.
- Removing and installing, refer to LEAK DETECTION PUMP .
- Bolt
- 4 Nm
- Connecting Hose
- Clamp
- Air Filter
- For the leak detection pump
- No maintenance schedule.
- Bracket
- Connecting Pipe
- Clipped to the bracket.
- To disconnect, press the release button on the connecting piece.
- Vent Line
- To the fuel tank filler tube.
- To disconnect, press the release button on the connecting piece.
- Vent Line
- To disconnect, press the release button on the connecting piece.
- Vent Line
- To the EVAP canister purge regulator valve 1 -N80-.
- To disconnect, press the release button on the connecting piece.
