Shift And Selector Cables, With A Plastic Cable Bracket And Relay Lever

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Lubricate the bearing areas and the sliding surfaces.

Do not bend the operating cables.

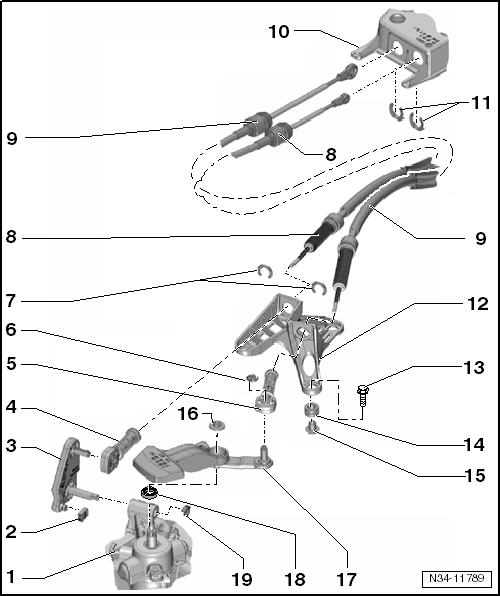

Fig 1: Shift Selector Cable Assembly Component Identification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Gear Shift Unit
Sliding Shoe
Relay Lever
- Made of plastic.
- Installed position, refer to Figure.
- Adjust the shift mechanism after installing. Refer to SHIFT MECHANISM, ADJUSTING .
- Plastic relay lever, removing and installing with the cable retainer. Refer to PLASTIC RELAY LEVER .
Cable Retainer
- Adjust the shift mechanism after installing. Refer to SHIFT MECHANISM, ADJUSTING .
- For attaching the selector cable to the relay lever.
- Do not interchange, the cable locking mechanisms for the selector cable to the relay lever and for the shift cable to the transmission shift lever are different.
- Removing from and installing to the relay lever. Refer to PLASTIC RELAY LEVER .
- Allocation, refer to Figure.
Cable Retainer
- Adjust the shift mechanism after installing. Refer to SHIFT MECHANISM, ADJUSTING .
- For attaching the shift cable to the transmission shift lever.
- Do not interchange, the cable locking mechanisms for the selector cable to the relay lever and for the shift cable to the transmission shift lever are different.
- Allocation, refer to Figure.
Lock Washer
- Always replace.
Lock Washer
- Always replace.
- Be careful not to damage the cables when removing.
Selector Cable
- Attaches to the cable retainer -item 4-.
- Installed position, refer to SHIFT AND SELECTOR CABLES, INSTALLED POSITION .
Shift Cable
- Attaches to the cable retainer -item 5-.
- Installed position, refer to SHIFT AND SELECTOR CABLES, INSTALLED POSITION .
Shift Housing
Lock Washer
- Always replace.
- Be careful not to damage the cables when removing.
Cable Bracket
- Made of plastic.
Bolt
- 20 Nm
- Quantity: 3
- For the cable bracket to the transmission.
Grommet
- Quantity: 3
- For the cable bracket to the transmission.
Spacer
- Quantity: 3
Nut
- See -item 7- in GEAR SHIFT UNIT OVERVIEW .
Transmission Shift Lever
- Installing, refer to Figure.
- Installed position, refer to Figure.
- Adjust the shift mechanism after installing. Refer to SHIFT MECHANISM, ADJUSTING .
Seal
- Removing and installing, see -item 6- in GEAR SHIFT UNIT OVERVIEW .
Clip
- For the relay lever to the gear shift unit.
