Gear Shift Unit Overview

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exploded View Of Shift Mechanism
GWWN34-1794Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Gear Shift Unit
    • Consisting of the gear shift shaft and the gear shift cover.
    • The components cannot be separated from each other.
  2. Backup Lamp Switch -F4-
    • 20 Nm
    • Coat the threads lightly with MoS 2 grease.
  3. Locking Pin
    • For adjusting the shift mechanism.
    • Removing, refer to Figure.
    • Installing, refer to Figure.
  4. Relay Lever
  5. Bushing
    • Not needed with the plastic relay lever.
  6. Seal
    • Pry out using a screwdriver.

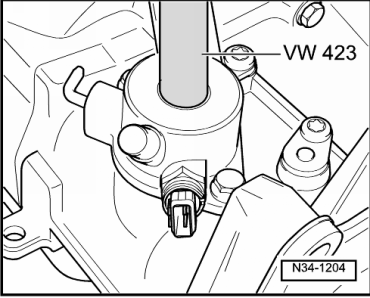

    • Installing, refer to Figure.
  7. Nut
    • 23 Nm
    • Always replace.
    • Self-locking.
  8. Transmission Shift Lever
    • Install so that the master spline aligns with the shift rod.
    • Can be replaced with the shift mechanism still installed.
    • Installed position, refer to Figure.
  9. Cap
    • For transmission ventilation.
  10. Lock Washer
    • Always replace.
    • Not needed with the plastic relay lever.
  11. Cover
  12. Spring
    • Not installed in all transmissions.
    • Install if present.
