Secondary Air Injection Pump Motor -V101-

Removing

-- Remove the throttle valve control module. Refer to Throttle Valve Control Module -J338- .

-- Disconnect the connecting pipes -1 and 2-. To do so, compress the securing rings.

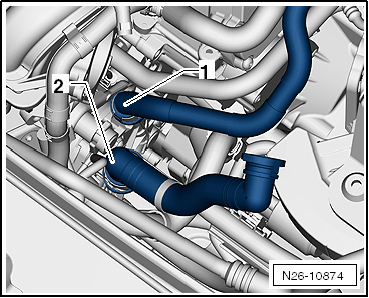

Fig 1: Removing Connecting Pipes

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to Description and Operation .

-- Disconnect the connectors -1 and 2-.

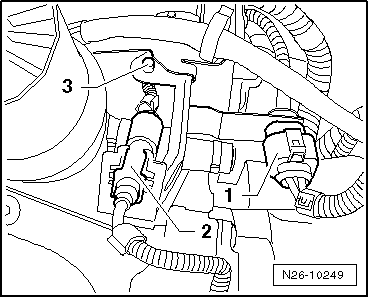

Fig 2: Disconnect Connectors & Pressing Out Clip For Cable Guide

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press out the clip -3- for the wire guide.

-- Press out the wire clip at the top front bolt.

-- Remove the intake manifold support bolts -1- from the intake manifold.

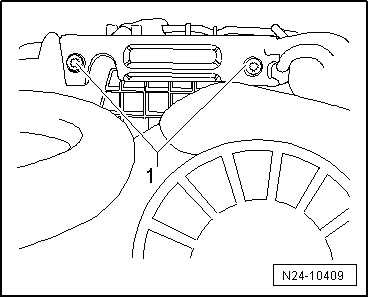

Fig 3: Removing Intake Manifold Support Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower bolt -arrow- from the intake manifold support.

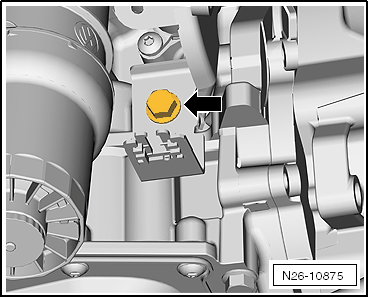

Fig 4: Removing Lower Intake Manifold Support Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the intake manifold support slightly to the side. Remove the nuts and the AIR pump motor.

Installing

Install in reverse order of removal. Note the following:

• Make sure that connecting pipes lock securely to the AIR pump motor.

Tightening Specifications
