Rear Lid Assembly Overview

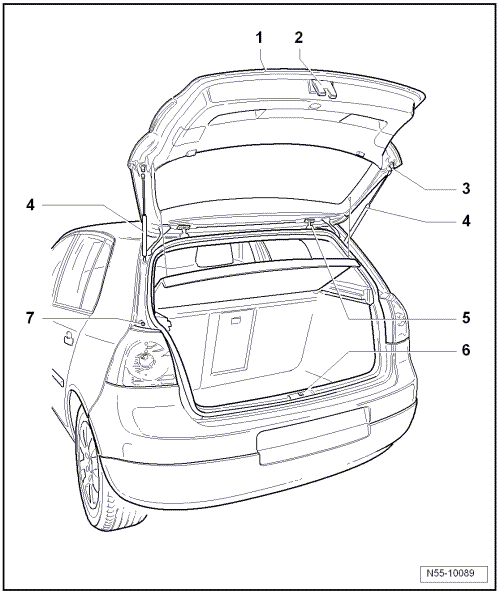

Fig 1: Identifying Rear Lid, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lid
- Removing and Installing REAR LID
- Adjusting REAR LID, ADJUSTING
Hood lock
- Removing and Installing REAR LID LOCK
Adjusting buffer
- left and right
- Adjusting REAR LID, ADJUSTING
Gas strut
- Removing GAS STRUT
- Venting Gas GAS-FILLED STRUT VENTING
Hinge
- Removing and Installing REAR LID HINGE
Striker pin
- Removing and Installing REAR LID LATCH BRACKET
- Adjusting REAR LID, ADJUSTING
Cap
- left and right
- Adjustment buffer stop.
