Rear Lid Latch Bracket

Removing

-- Remove lock carrier cover Removal and Installation .

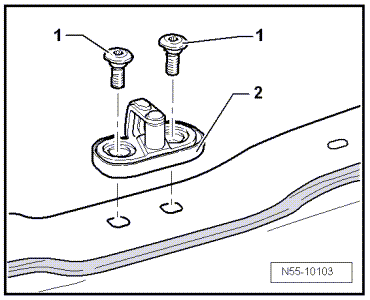

Fig 1: Identifying Latch Bracket Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove screws -1- and striker pin.

Installing

-- Assemble the latch bracket -2-.

Fig 2: Identifying Latch Bracket Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tightening specification for bolts -1- : 23 Nm.

-- Adjust latch bracket REAR LID, ADJUSTING

Further installation is in reverse order of removal.
