Front Seat Belts Assembly Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

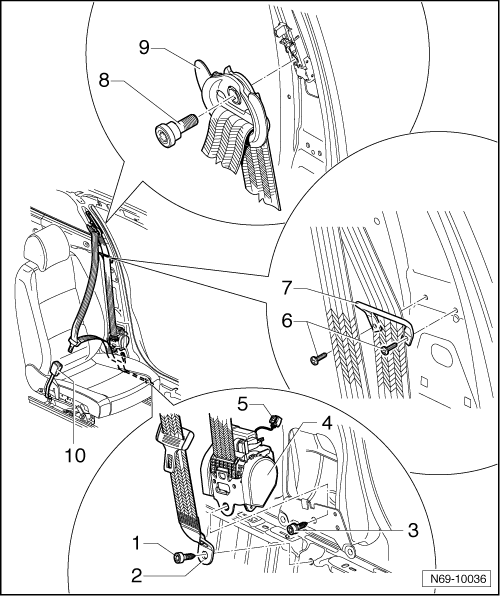

Fig 1: Identifying Front Seat Belts Removing/Installing Components (4-Door)
GWWN69-10036Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 40 Nm
    • Micro-encapsulated, replace after each loosening
  2. Belt Anchor
  3. Bolt
    • 40 Nm
  4. B-pillar Belt Retractor
  5. Wiring Harness
  6. Bolt
    • Quantity: 2
    • 4.5 Nm
  7. Belt Guide
  8. Bolt
    • 40 Nm
  9. Belt Guide Ring
  10. Belt Latch
