Engines: BEJ And BER
NOTE:

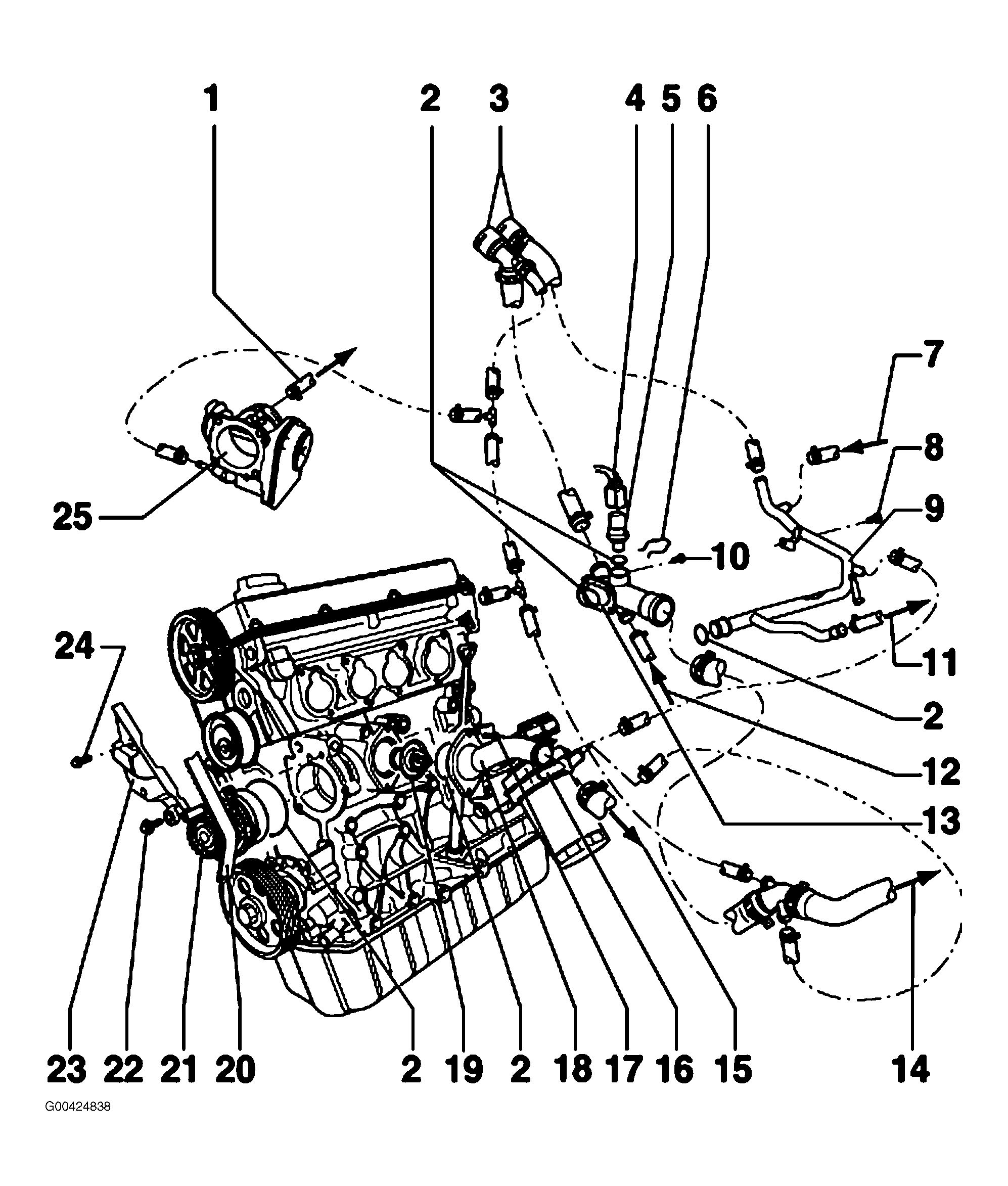

Coolant hose connection diagram for engines BEJ and BER. See Engines: BEJ and BER .
NOTE:
The following list refers to items in Fig 1.
- To top of expansion tank
- O-ring
- Replace if damaged
- Connection heater heat exchanger
- Connector
- 4-pin
- Gold plated contacts for Engine Coolant Temperature (ECT) Sensor -G62-
- Engine Coolant Temperature (ECT) sensor -G62-
- For engine control module
- With Engine Coolant Temperature (ECT) Sensor -G2-
- Gold plated contacts for Engine Coolant Temperature (ECT) Sensor -G62-
- Release pressure in coolant system if necessary, before removing components
- Retaining clip
- Check seated securely
- From ATF radiator (automatic transmission) or shape hose
- See item 12.
- 25 Nm
- Coolant pipe
- 10 Nm
- To bottom of expansion tank
- From ATF cooler (automatic gearbox) or shaped hose (item 7)
- Union
- To top of radiator
- From bottom of radiator
- Oil cooler
- Ensure clearance to adjacent components
- 15 Nm
- Union
- Coolant thermostat
- Checking: Heat up thermostat in water
- Starts to open at approx. 86° C
- Opening stroke: min. 7 mm
- Removing and installing. See THERMOSTAT, REMOVING AND INSTALLING .
- Toothed belt
- Mark direction of rotation before removing
- Check for wear
- Do not kink
- Coolant pump
- Check for ease of movement
- If damaged or leaking replace complete
- Removing and installing. See COOLANT PUMP, REMOVING AND INSTALLING .
- 15 Nm
- Rear toothed belt guard
- 20 Nm
- Throttle valve control module
- Heated by coolant
