Airbag Component Location Overview

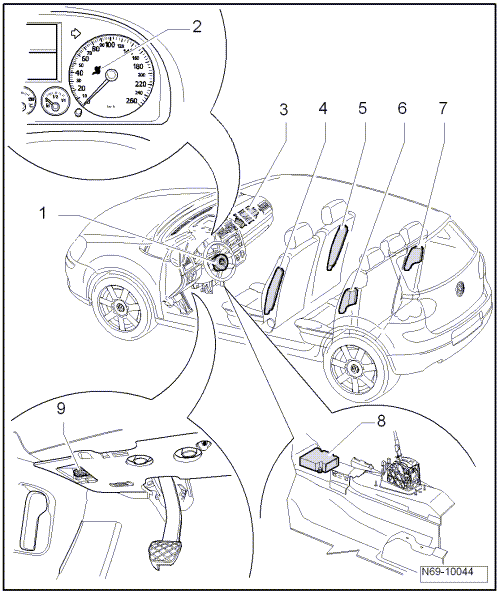

Fig 1: Airbag Component Location Overview (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Driver airbag unit
- Removing, refer to AIR BAG, DRIVER SIDE, GOLF FROM MY 04
Airbag indicator lamp (K 75)
Front passenger airbag unit
- Removing, refer to PASSENGER AIRBAG UNIT
Side airbag, driver side
- Removing, refer to DRIVER AND PASSENGER SIDE AIRBAG
Side airbag, front passenger side
- Removing, refer to DRIVER AND PASSENGER SIDE AIRBAG
Rear driver side side airbag
- 4-door only
- Removing, refer to REAR SIDE AIRBAG, 4-DOOR
Rear side-airbag, front passenger side
- 4-door only
- Removing, refer to REAR SIDE AIRBAG, 4-DOOR
Airbag Control Module (J234)
- Removing, refer to AIRBAG CONTROL MODULE J234
- Adapting components (coding), refer to COMPONENTS, ADAPTING
Diagnostic connector

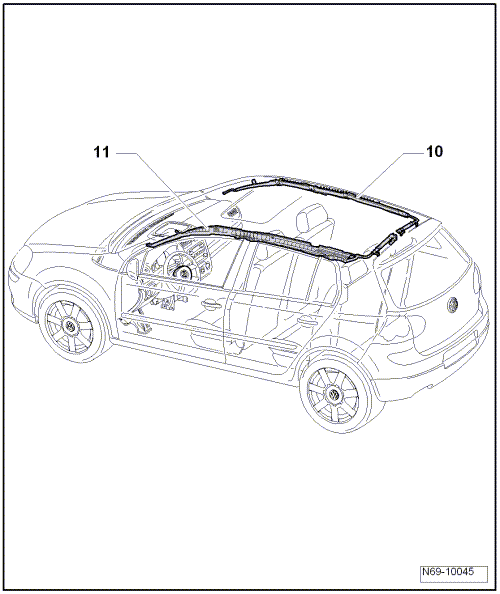

Fig 2: Airbag Component Location Overview (2 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

10 -
Front passenger side curtain airbag
- Removing, refer to DRIVER AND PASSENGER SIDE CURTAIN AIRBAGS
11 -
Driver side side curtain airbag
- Removing, refer to DRIVER AND PASSENGER SIDE CURTAIN AIRBAGS
