Wiper Motor

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

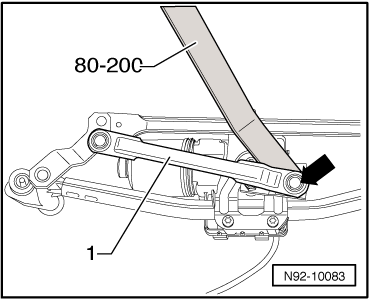

Fig 1: Identifying Ball Head Of Linkage Pushed On To Motor Crank

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Remove wiper frame with linkage and motor. Refer to WIPER FRAME WITH LINKAGE AND WIPER MOTOR .

-- Pry off ball head -arrow- of linkage -1- from motor crank using 80-200.

-- Remove the nut -1-.

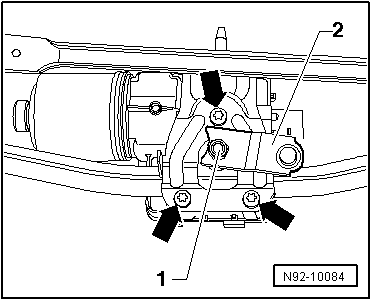

Fig 2: Identifying Wiper Motor Mounting Nut And Motor Crank

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove motor crank -2- from wiper motor shaft.

-- Remove mounting bolts -arrows- and remove wiper motor with control module out of wiper frame.

Installing

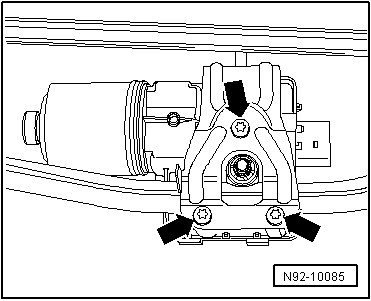

Fig 3: Identifying Wiper Motor Mounting Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert wiper motor with control module into wiper frame and secure it with mounting bolts -arrows-.

-- Tighten all threaded connections to the specification shown in TIGHTENING SPECIFICATIONS .

-- Place motor crank -1- onto wiper motor shaft. Distance -a- to stop -2- must be 3 +/- 1 mm.

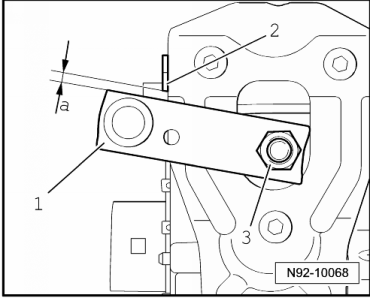

Fig 4: Identifying Motor Crank Placed Onto Wiper Motor Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use the nut -3- to attach the motor crank and the windshield wiper motor shaft.

-- Tighten all threaded connections to the specification shown in TIGHTENING SPECIFICATIONS .

-- Push ball head -arrow- of linkage -1- onto motor crank.

Fig 5: Identifying Ball Head Of Linkage Pushed On To Motor Crank

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
