Wiper Frame With Linkage And Wiper Motor
WARNING: This page is about a different variant/trim than selected.
-- Remove wiper arms. Refer to WIPER ARMS .
-- Remove plenum chamber cover. Refer to PLENUM CHAMBER COVER .
-- Remove air duct trim. Refer to AIR DUCT TRIM .

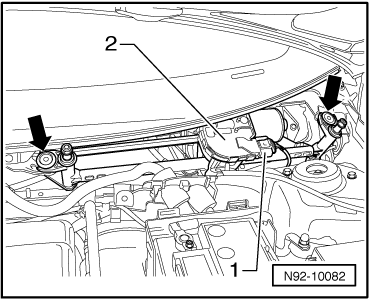

-- Disconnect electrical connection -1-.
-- Remove mounting bolts -arrows- and swing wiper motor and frame -2- upward and out of vehicle.
