Air Duct Trim

WARNING: This page is about a different variant/trim than selected.

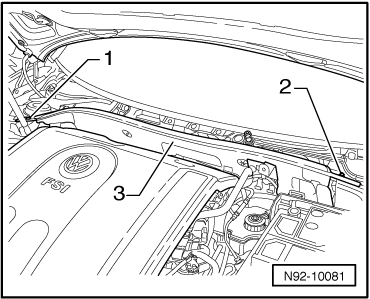

Fig 1: Identifying Air Guide

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- and nut -2- on the air duct trim -3-.

-- Remove air guide trim -3- upward and out of vehicle.
