Input Shaft, Output Shafts, Differential And Selector Rods
WARNING: This page is about a different variant/trim than selected.

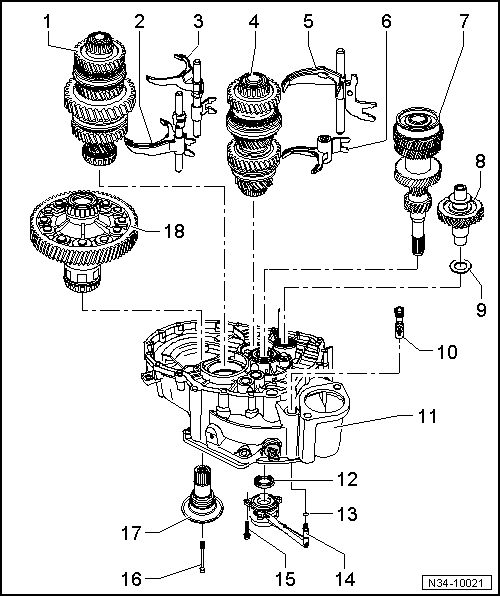

Fig 1: Input Shaft, Output Shafts (Pinion Shafts), Differential And Selector Rods, (Rabbit/GTI), Removing And Installing - Assembly Overview
- Output Shaft, 1st to 4th Gears
- Disassembling and assembling, refer to OUTPUT SHAFT, 1ST TO 4TH GEARS .
- Installed position, refer to SELECTOR SHAFTS AND FORKS, INSTALLED POSITIONS .
- Selector Shaft with Selector Fork, for 1st and 2nd Gear
- Installed position, refer to SELECTOR SHAFTS AND FORKS, INSTALLED POSITIONS .
- Selector Shaft with Selector Fork, for 3rd and 4th Gear
- Installed position, refer to SELECTOR SHAFTS AND FORKS, INSTALLED POSITIONS .
- Output Shaft, 5th, 6th and Reverse Gears
- Disassembling and assembling, refer to OUTPUT SHAFT, 5TH, 6TH AND REVERSE GEARS .
- Installed position, refer to SELECTOR SHAFTS AND FORKS, INSTALLED POSITIONS .
- Selector Shaft with Selector Fork, for 5th and 6th Gear
- Installed position, refer to SELECTOR SHAFTS AND FORKS, INSTALLED POSITIONS .
- Selector Fork, Reverse Gear
- Installed position, refer to SELECTOR SHAFTS AND FORKS, INSTALLED POSITIONS .
- Differences, refer to Figure.
- Disassembling and assembling, refer to SHIFT FORKS .
- Input Shaft
- Disassembling and assembling, refer to INPUT SHAFT OVERVIEW .
- Always replace the grooved ball bearing INPUT SHAFT OVERVIEW => List Item:Grooved Ball Bearing on the input shaft.
- Reverse Shaft
- With a thrust washer.
- Thrust Washer
- Breather Assembly
- Connects to the slave cylinder.
- Clutch Housing
- Disassembling and assembling, refer to CLUTCH HOUSING .
- Input Shaft Seal
- Removing and installing, refer to INPUT SHAFT SEAL .
- O-ring
- Installs on the line connection.
- Lubricate with brake fluid before installing.
- Clutch Slave Cylinder with Release Bearing
- Bolt
- Quantity: 3
- Always replace.
- Removing and installing, see CLUTCH RELEASE MECHANISM OVERVIEW => List Item:Bolt .
- Countersunk Bolt
- Removing and installing, see DIFFERENTIAL => List Item:Bolt .
- Flange Shaft with Pressure Spring
- Removing and installing, refer to RIGHT FLANGE SHAFT AND SEAL .
- Differential
- Disassembling and assembling, refer to DIFFERENTIAL .
