Turbocharger Component Overviews: Notes

WARNING: This page is about a different variant/trim than selected.

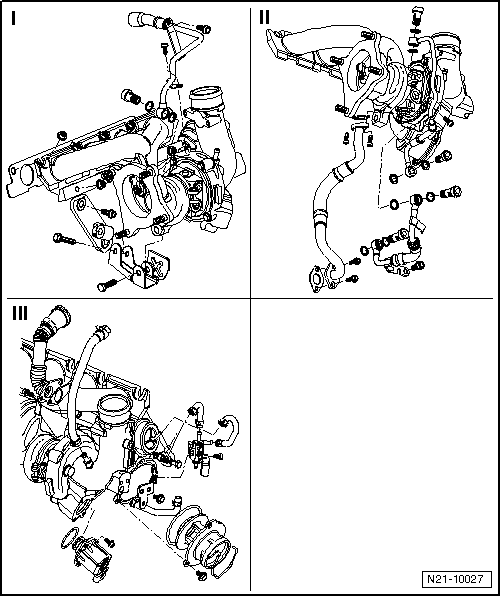

Fig 1: Assembly Overview, Turbocharger
GWWN21-10027Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. TURBOCHARGER AND COOLANT RETURN PIPE
  2. TURBOCHARGER COOLANT INLET, OIL INLET AND RETURN PIPE
  3. Turbocharger Recirculation Valve -N249- AND Wastegate Bypass Regulator Valve -N75-
