EVAP Canister

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine and transmission jack VAG 1383A

Removing

CAUTION:

To protect the decoupling elements, secure the front part of the exhaust system to the vehicle underbody with wire before removing the mufflers.

-- Remove the center and rear mufflers. Refer to MUFFLER AND MOUNTS ASSEMBLY OVERVIEW .

-- Remove the heat shield fasteners -arrows- shield.

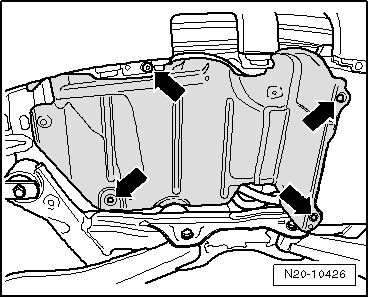

Fig 1: Identifying Heat Shield & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- For supporting purposes, place the VAG 1383 A under the rear subframe.

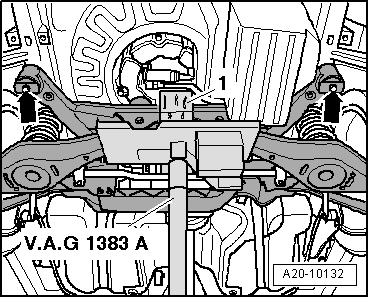

Fig 2: Identifying Engine/Transmission Jack V.A.G 1383A Placed Under Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place a block of wood -1- between the VAG 1383A and the subframe.

-- Remove rear bolts -arrows- at left and right of subframe.

-- Slowly lower the subframe using the VAG 1383A until the distance between the subframe (left) and body achieves the dimension -a-.

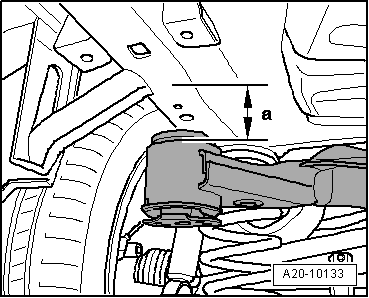

Fig 3: Identifying Subframe Dimension

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Dimension -a- = 45 to 50 mm.

-- Disconnect the vent lines -3, 4 and 5- by pressing the release button.

Fig 4: Identifying Vent Lines & Retaining Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1, 2 and 6-.

-- Release the retaining tabs in the -direction of the arrow- with a screwdriver and remove the Evaporative Emission (EVAP) canister.

Installing

Installation is performed in the reverse order of removal, noting the following:

-- Connect the ventilation lines until they engage audibly.

-- Install the rear subframe. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BGP, BPY, AWP, BGQ, CBTA, CBUA, CCTA, CBFA] Removal and Installation .

Tightening Specifications

Component	Nm
EVAP canister to body	8
Muffler with mounts	Refer to MUFFLER AND MOUNTS ASSEMBLY OVERVIEW .
