EVAP System Assembly Overview
WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

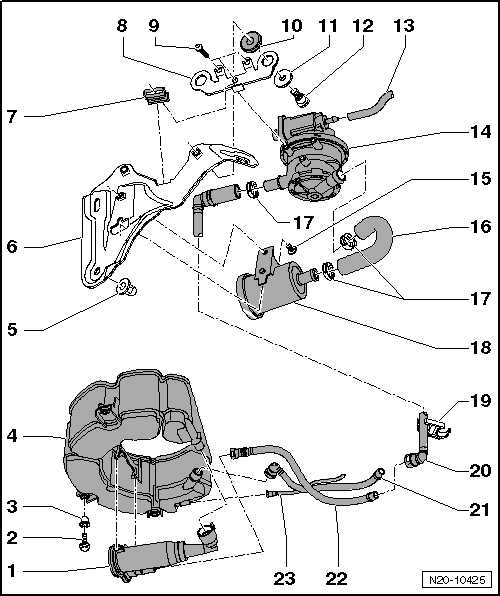

- (EVAP) Evaporative Emission Filter
- Bolt, 8 Nm
- Bushing
- Evaporative Emission (EVAP) Canister
- Component location: Bottom of the spare tire wheelwell.
- Removing and installing, refer to EVAP CANISTER .
- Nut, 6 Nm
- Bracket
- Support
- Bracket
- Bolt, 4 Nm
- Rubber Grommet
- Washer
- Bolt, 8 Nm
- Vacuum Line
- To the engine.
- Leak Detection Pump (LDP) -V144-
- Component location: Under the right rear wheel housing liner in the wheel housing.
- Removing and installing, refer to LEAK DETECTION PUMP .
- Checking fuel supply system for leaks. Refer to FUEL/EVAP SYSTEM, CHECKING FOR LEAKS .
- Bolt, 4 Nm
- Connecting Hose
- Clamp
- Air Filter Housing
- For the LDP.
- Bracket
- Connecting Pipe
- Clipped onto the bracket.
- To disconnect, press the release button on the connection piece.
- Vent Line
- To the fuel tank filler tube.
- To disconnect, press the release button on the connection piece.
- Vent Line
- To disconnect, press the release button on the connection piece.
- Vent Line
- To the EVAP canister purge regulator valve.
- To disconnect, press the release button on the connection piece.
