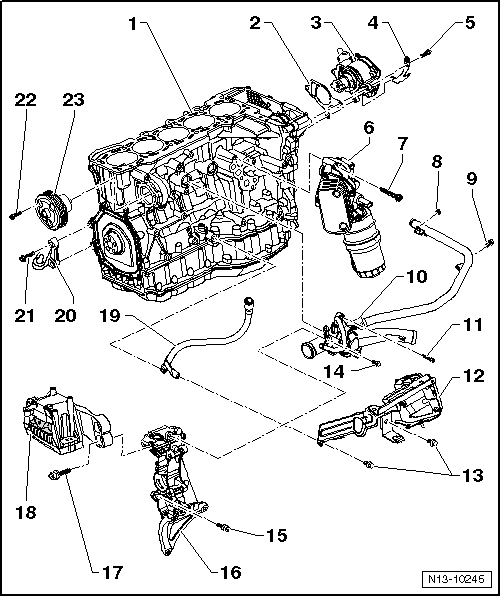

Engine Overview, Front/Side
WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.
- Cylinder Block
- Gasket
- Always replace.
- Brake Booster Vacuum Pump
- Do not open.
- Removing and installing, refer to VACUUM PUMP .
- Bracket
- Bolt
- 10 Nm
- Oil Filter Adapter
- Overview, refer to OIL FILTER ADAPTER OVERVIEW .
- Bolt
- 25 Nm
- Nut
- 10 Nm
- Bolt
- 10 Nm
- Thermostat Housing
- With thermostat and coolant pipe.
- Bolt
- 10 Nm
- Intake Manifold Support
- Only for engines with a Secondary Air Injection (AIR) system.
- Bolt
- 25 Nm
- Bolt
- 10 Nm
- Bolt
- 25 Nm
- Accessory Bracket
- Bolt
- 40 Nm + an additional 90° (1/4) turn.
- Engine Mount
- Guide Tube
- For the oil dipstick.
- Bracket
- Bolt
- 25 Nm
- Bolt
- 10 Nm
- Coolant Pump
- Removing and installing, refer to COOLANT PUMP .
