EVAP System Components

WARNING: This page is about a different car, the 2009 Volkswagen GTI and 2008 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

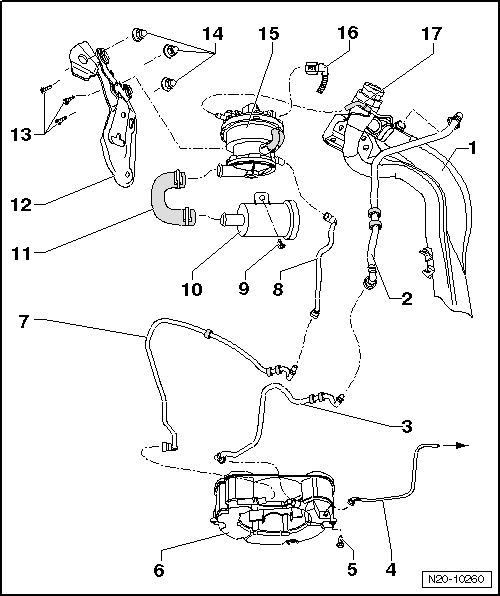

Fig 1: Identifying Assembly Overview: EVAP Canister System
GWWN20-10260Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Fuel Tank
  2. Vent Line
    • Behind the wheel housing liner.
  3. Vent Line
    • On the underbody.
  4. Vent Line
    • To the EVAP canister purge regulator valve 1 -N80-.
    • To remove, press the release button.
  5. Bolt
    • 8 Nm
  6. Evaporative Emission (EVAP) Canister
    • Component location: Bottom of the spare tire wheel well.
    • Removing and installing, refer to EVAP CANISTER .
  7. Connecting Line
    • On the underbody.
  8. Connecting Line
    • Behind the wheel housing liner.
  9. Bolt
    • 3 Nm
  10. Air Filter Housing
    • For the leak detection pump.
  11. Connecting Hose
  12. Bracket
    • For the leak detection pump
  13. Bolt
    • 2 Nm
  14. Nut
    • 6 Nm
  15. Leak Detection Pump -V144-
  16. Connector
  17. Vacuum Line
    • From the intake manifold.
