Fastener Tightening Specifications

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

Component	Fastener Size	Nm
Bolts and Nuts
	M6	10
	M7	15
	M8	25
	M10	40
	M12	60

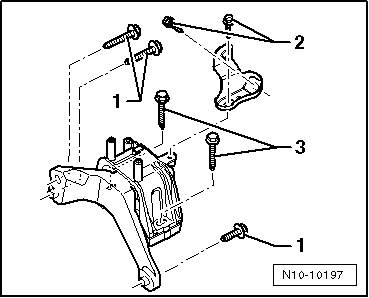

Fig 1: Identifying Engine Mount & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

= 40 Nm + an additional 90° (1/4) turn ¹
= 20 Nm + an additional 90° (1/4) turn ¹
= 60 Nm + an additional 90° (1/4) turn ¹

Fig 2: Identifying Transmission Mount & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A -

= 40 Nm + an additional 90° (1/4) turn ¹

B -

= 60 Nm + an additional 90° (1/4) turn ¹

Fig 3: Identifying Pendulum Supports & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

First secure the pendulum support to the transmission and then to the subframe.

A -

Strength category 8.8: = 40 Nm + an additional 90° (1/4) turn ¹

A -

Strength category 10.9: = 50 Nm + an additional 90° (1/4) turn ¹

B -

= 100 Nm + an additional 90° (1/4) turn ¹

Removing: First remove the bolt -B-, then the bolts -A-.

Installing: First install the bolts -A-, then the bolt -B-.

¹ Always replace
