Radiator And Fan Overview
WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

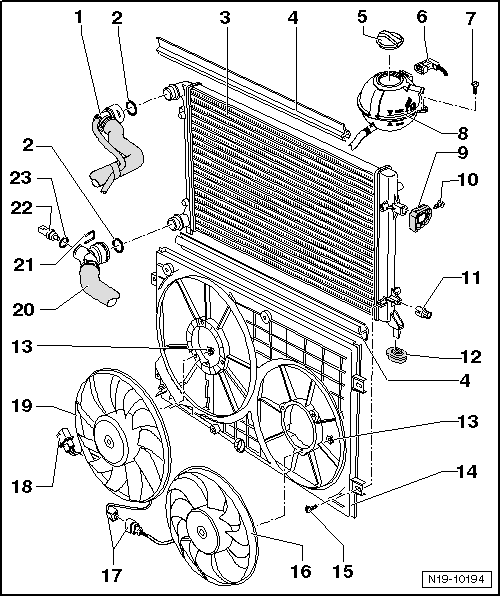

- Upper Coolant Hose
- From the coolant thermostat housing to the cylinder head.
- O-ring
- Replace if damaged.
- Radiator
- Removing and installing, refer to RADIATOR .
- After replacing, replace the entire amount of coolant.
- Gasket
- Cap
- Check using the cooling system testerV.A.G 1274 B and the adapterV.A.G 1274/9. Refer to CHECKING THE PRESSURE RELIEF VALVE IN THE CAP .
- The pressure relief valve must open at 1.4 to 1.6 bar.
- Connector
- Bolt
- 3 Nm
- Expansion Tank
- Perform a leak test on the cooling system using the cooling system testerV.A.G 1274 B and the adapterV.A.G 1274/8. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Bracket
- For the radiator.
- Bolt
- 5 Nm
- Spacer Piece
- For the refrigerant line bracket.
- Support
- Insert in the lock carrier.
- Nut
- 5 Nm
- Fan Shroud
- Bolt
- 5 Nm
- Coolant Fan 2 -V177-
- Removing and installing, refer to FAN SHROUD AND FAN .
- Connector
- Connector
- Coolant Fan -V7-
- Removing and installing, refer to FAN SHROUD AND FAN .
- With the coolant fan control module -J293-.
- Lower Coolant Hose
- From the connection for the coolant flange.
- Retaining Clip
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- O-ring
- Always replace.
