Sealing Flange, Vibration Damper Side

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Counter holder tool T10069
Assembly tool T10215
Torque wrench VAG 1601
Torque wrench (40-200 Nm) VAG 1332
Sealant D 176 501

Removing

-- Remove the ribbed belt. Refer to RIBBED BELT .

-- Remove the vibration damper. To do so, lock the vibration damper using the T10069.

Fig 1: Counter-Holder T10069 To Hold Vibration Damper

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the oil pan. Refer to OIL PAN .

-- Remove the sealing flange bolts and sealing flange.

-- Remove the sealant residue from the sealing surfaces.

Installing

-- Before installing, remove any remaining oil from the end of the crankshaft with a clean cloth.

-- Cut the tube nozzle at the front marking (nozzle diameter approximately 3 mm).

Fig 2: Applying Silicone Sealing Compound

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Apply a bead of sealantD 176 501 approximately 2 to 3 mm as shown -arrows- on the clean sealing flange sealing surface.

NOTE:

Cover the oil seal with a clean cloth before applying the sealing bead.

The sealant bead must not be thicker than 2 to 3 mm or excess sealant could get into the oil pan and clog the oil intake pipe strainer.

Note the expiration date of the sealant.

The sealing flange must be installed within 5 minutes after application of the sealant.

-- Install the T10215/1 -1- onto the crankshaft end -3-.

-- Slide the sealing flange with seal -2- carefully over the T10215/1 -1-.

-- Tighten the sealing flange to the cylinder block.

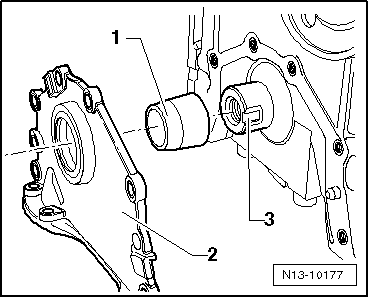

Fig 3: Identifying Guide Sleeve T10215/1, Crankshaft Pin & Sealing Ring

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the oil pan. Refer to OIL PAN .

NOTE:

Vibration damper bolt must be replaced.

Tighten the bolt using the torque wrench VAG 1601.

-- Install the vibration damper and secure using the T10069.

Fig 4: Counter-Holder T10069 To Hold Vibration Damper

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the new vibration damper bolt to 100 Nm + 180° (1/2) additional turn.

-- Install the ribbed belt. Refer to RIBBED BELT .
