Removal And Installation: Turbocharger

WARNING: This page is about a different car, the 2009 Volkswagen GTI and 2008 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

CAUTION:

If mechanical damage is found on the turbocharger, for example, a destroyed compression wheel, it is not enough to just replace the turbocharger. Perform the following steps to prevent subsequent damage.

  • Check the air filter housing, the air filter element and the intake hoses for contamination.
  • Check the entire charge air circuit and cooler for contamination.

If contaminants are found in the charge air circuit, the circuit must be cleaned and the cooler replaced if necessary.

Removing

-- Remove the air filter housing. Refer to AIR FILTER HOUSING .

-- Remove the noise insulation. Refer to Description and Operation .

-- Remove the front part of the right wheel housing liner and/or the right front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER .

-- Drain the coolant. Refer to DRAINING AND FILLING .

-- Remove the engine cover.

-- Disconnect the connectors from the ignition coils and the wiring harness and lay them aside.

Fig 1: Identifying Connectors Of Ignition Coils
GWWN28-10010Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Disconnect the coolant line -arrow- from the coolant expansion tank.

Fig 2: Identifying Coolant Line To Coolant Expansion Tank
GWWA21-10043Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Disconnect the vacuum line -1- at the separating point -2- and free up the line.

Fig 3: Identifying Vacuum Line -1-, Ground Wire -3- And Bolt -4-
GWWN21-10172Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the coolant hoses -arrows- from the coolant pipe.

-- Disconnect the ground wire -3- and loosen the bolt -4-.

Fig 4: Identifying Charge Air Pipe Bolt -Arrow- And Hose Clamp -2-
GWWN21-10192Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the charge air pipe bolt -arrow-.

-- Loose the hose clamp -2- and lay the charge air pipe on the cylinder head.

-- Seal off the turbocharger using the engine bung set -VAS 6122-.

-- Remove the bolts -1 though 3- and remove the heat shield together with the coolant pipe.

Fig 5: Identifying Heat Shield Bolts
GWWN21-10173Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:

Remove the bolt -2- from the heat shield using a 6 mm -A- hex socket. The hex socket must be at least 5 cm -B- long. A socket that tapers to 6 mm at the tip is too wide.

Fig 6: Identifying 6mm Hex Socket -A-, 5cm Long -B-
GWWN15-10449Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the oil supply pipe -4- from the turbocharger.

Fig 7: Identifying Heat Shield Bolts
GWWN21-10173Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the bolts -arrows-.

Fig 8: Identifying Air Guide Pipe And Bolts
GWWA21-10162Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Lift the clamps -1 and 2- and remove the charge air pipe.

Vehicles with All Wheel Drive (AWD)

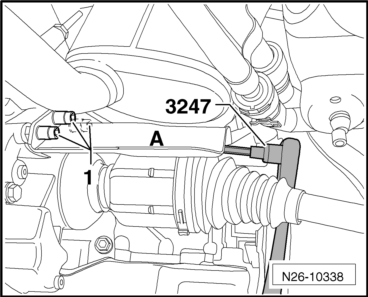

Fig 9: Identifying, Tool -3247-, Bolts -1- And Heat Shield -A-
GWWN26-10338Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the bolts -1- and heat shield -A- from above the right drive axle.

Vehicles with Front Wheel Drive (FWD)

Fig 10: Identifying Drive Axle Heat Shield Bolts And Shield
GWWN34-11369Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the right drive axle heat shield bolts -arrows- and shield.

Continuation for all Vehicles

Fig 11: Identifying Turbocharger Electrical Connectors
GWWA21-10186Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Disconnect the connectors -1 and 2- and free up the wire -arrows-.

Fig 12: Identifying Turbocharger Support And Bolts
GWWA21-10187Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the bolts -1- using the Bit XZN 10 -T10154-.

-- Remove the bolt -2-.

-- Remove the banjo bolt -2- and move the coolant pipe to the side.

Fig 13: Identifying Oil Return Line, Coolant Line And Oil Supply Line Fasteners
GWWA21-10188Courtesy of VOLKSWAGEN UNITED STATES, INC.

Vehicles with FWD

-- Remove the bolts -1- for the oil return pipe.

Vehicles with AWD

-- Remove the oil return pipe bolts from the crankcase.

Continuation for all Vehicles

-- Remove the bolt -3- for the oil supply pipe.

-- Disconnect the coolant hose -arrow- and move it to the side.

Fig 14: Identifying Coolant Hose Clamps
GWWA21-10194Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the nuts -arrows-.

Fig 15: Identifying Turbocharger/Exhaust Manifold Upper Nuts
GWWA21-10200Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the turbocharger upward.

Installing

CAUTION:

If mechanical damage is found on the turbocharger, for example, a destroyed compression wheel, it is not enough to just replace the turbocharger. Perform the following steps to prevent subsequent damage.

  • Check the air filter housing, the air filter element and the intake hoses for contamination.
  • Check the entire charge air circuit and cooler for contamination.

If contaminants are found in the charge air circuit, the circuit must be cleaned and the cooler replaced if necessary.

Installation is performed in the reverse order of removal, noting the following:

Component   Nm
Exhaust manifold/turbocharger to cylinder head (1)(2) Observe the tightening sequence, refer to Figure.
Oil supply pipe to turbocharger (M12 banjo bolt) 33
Oil return pipe to turbocharger 9
Coolant supply pipe to turbocharger (M14 banjo bolt) 38
Turbocharger bracket to cylinder block (2) 30
Turbocharger bracket to turbocharger (2) 30
Right charge air pipe to oil pan 10
Heat shield to cylinder head M8 and M12 20
(1) Replace nuts

(2) Use hot bolt paste.
