Right Bucket Seat Trim

NOTE:

The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

-- Remove the front seat. Refer to FRONT SEAT .

-- Remove the front seat belt latch:

-- Push the clamping pin -1- toward the inside and remove the clip -2-.

-- Press tab -3- upward and remove trim -4- from seat.

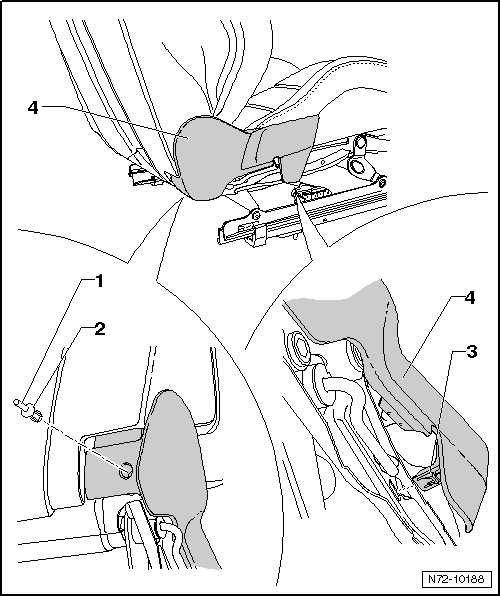

Fig 1: Right Bucket Seat Trim Removing/Installing Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
