Power Seat Bracket And Support

NOTE:

The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

-- Switch off ignition.

-- Remove left power seat trim. Refer to LEFT POWER SEAT TRIM

-- Remove bolts -1- (3.5 Nm) and remove bracket -2- from seat frame.

-- Remove two bolts -3- (3.5 Nm) and remove bracket -4- and spacer pipe -5- from seat frame.

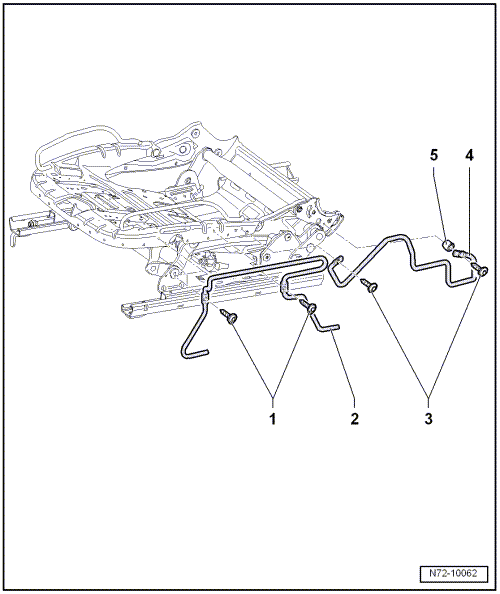

Fig 1: Identifying Retainer And Power Seat Bracket Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
