Left Power Seat Trim

NOTE:

The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

-- Switch off ignition.

-- Press clamping pin -1- inward and remove the clip -2-.

-- Pull rear trim -3- outward and then swing trim downward -arrow A-.

-- Remove rear trim from seat.

-- Pull front trim -4- upward and then swing trim outward -arrow B-.

-- Push front trim toward rear -arrow C-.

-- Remove front trim from seat and disconnect wiring harnesses from switches -5-.

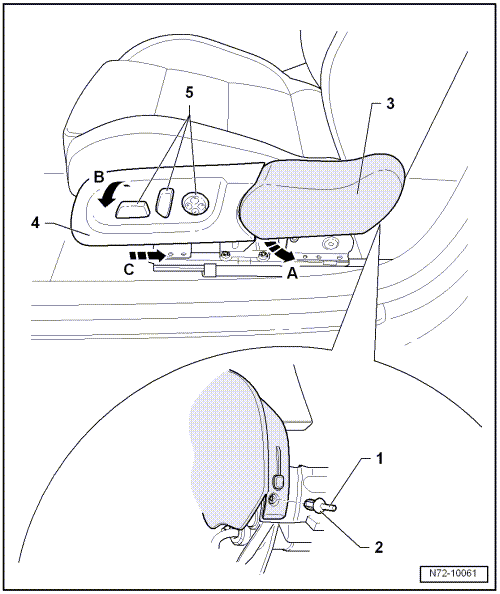

Fig 1: Identifying Left Power Seat Trim Removal/Installation Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
