Tail Lamp Assembly Inside Side Panel Overview, From 11.05

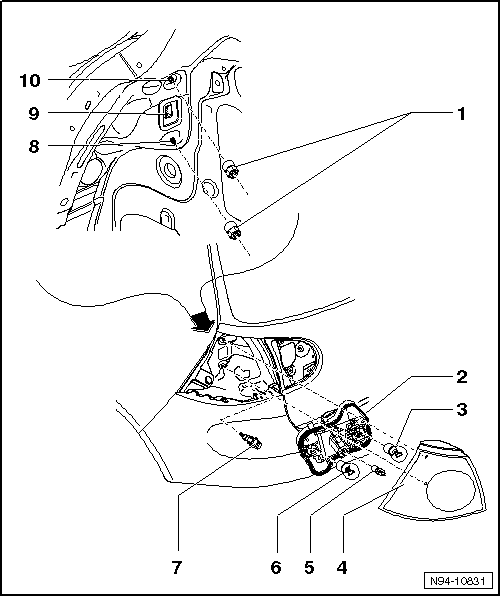

Fig 1: Rear Lights In Rear Fender From 11.05, Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Nuts
   • Tightening specifications, refer to TIGHTENING SPECIFICATIONS, TAIL LAMPS IN SIDE PANEL .
2. Bulb Holder
   • Removing and installing, refer to SIDE PANEL TAIL LAMP BULB HOLDER .
3. Left Tail lamp -M4- and Right Tail lamp -M2-
   • Bulb 12V, P 21 W
4. Tail Lamp Assembly Housing In Side Panel
   • Removing and installing, refer to TAIL LAMPS IN SIDE PANEL .
5. Left Rear Turn Signal Lamp -M6- and Right Rear Turn Signal Lamp -M8-
   • Bulb 12V, H 6 W
6. Left Brake Lamp -M9- and Right Brake Lamp -M10-
   • Bulb 12V, P 21 W
7. Adjusting Element
   • Removing and installing, refer to TAIL LAMP ADJUSTER .
   • Taillamps, adjusting, refer to TAIL LAMPS, ADJUSTING .
8. Threaded Pins On Taillamp Housing In Lower Side Panel
9. Connector On Taillamp Housing In Side Panel
10. Threaded Pins On Taillamp Housing In Upper Side Panel
