Tail Lamps, Adjusting

NOTE:

On vehicles from 11.05, an adjustment element is installed which can be used to adjust the flush dimension to the bumper cover. On vehicles before 11.05, this adjustment is not possible.

-- If the taillamp does not sit flush as shown in the illustration, it can be adjusted with the adjusting element. An adjustment of +/- 2 mm is possible.

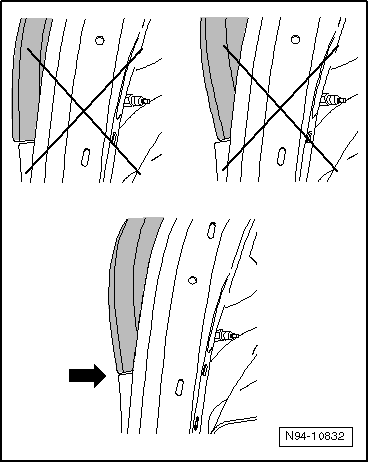

Fig 1: Taillamp Sitting Flush

GWWN94-10832

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press side trim -1- to side in -direction of arrow-.

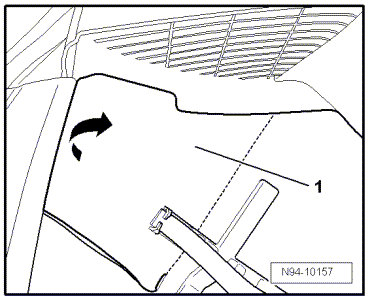

Fig 2: Press Side Trim To Side

GWWN94-10157

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen nuts -1- on taillamp in side panel.

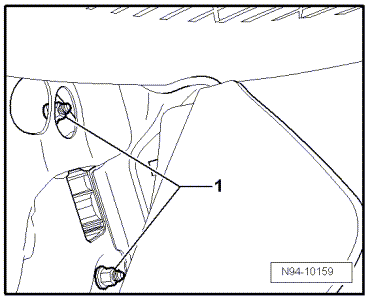

Fig 3: Taillamp Assembly In Side Panel Mounting Nuts

GWWN94-10159

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Rotate the adjusting element -arrow- in the corresponding direction until the flush dimension between the tail lamp and bumper cover is correct.

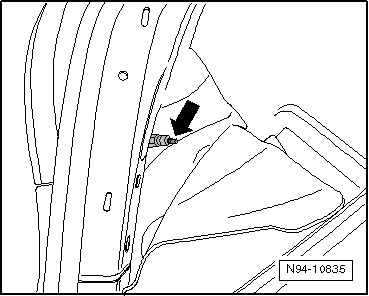

Fig 4: Locating Adjusting Element

GWWN94-10835

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the mounting nuts -1- to the specification shown in TIGHTENING SPECIFICATIONS, TAIL LAMPS IN SIDE PANEL .

Fig 5: Taillamp Assembly In Side Panel Mounting Nuts

GWWN94-10159

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
