Charge Air Pressure Sensor, Checking

Special tools and workshop equipment required

• Multimeter.
• Wiring diagram.
• Comparative turbocharger tester.

Test requirements

• The Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248- fuses OK.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".
• A/C switched off.
• Ground (GND) connections between engine/transmission/chassis OK.
• Ignition switched off.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to GENERAL DIAGNOSIS .

Start diagnosis

-- Connect the scan tool.

-- Switch the ignition on.

-- Using the scan tool, check the intake manifold pressure PID 11:

Diagnostic text		Specified value
Intake Manifold Pressure		PID 11 reading within +/- 50mbar of turbocharger tester

If the specified value is not obtained:

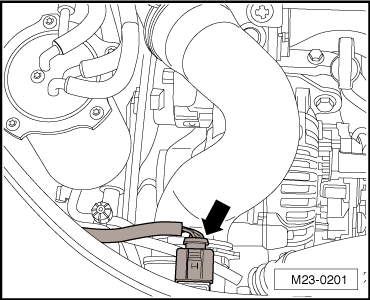

-- Disconnect the Charge Air Pressure Sensor -G31- electrical harness connector -arrow-.

Checking wiring

If the manufacturers test box is being used, perform the following step.

-- Install the test box. Refer to 68-PIN TEST BOX ADAPTER, VAG1598/19, INSTALLING .

If the manufacturers test box is not being used, perform the following step.

-- Remove the Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248-. Refer to DIESEL DIRECT FUEL INJECTION ECM, REPLACING .

-- Using a Multimeter --, check the Charge Air Pressure Sensor -G31- electrical harness connector terminals to the Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248- electrical harness connector T94 terminals for resistance.

Charge Air Pressure Sensor -G31- electrical harness connector terminals	Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248- electrical harness connector T94 terminals or test box socket
3	62
4	78

Specified value: 1.5 Ω Max.

If the specification was not obtained:

-- Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).

-- If necessary, repair the faulty wiring connection.

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

If no malfunction is detected in the wiring:

-- Erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .

-- Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to READINESS CODE .

-- End diagnosis.

If the DTC does return and no malfunction is detected in the wiring:

-- Replace the Charge Air Pressure Sensor -G31-

-- Erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .

-- Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to READINESS CODE .

If the DTC does return and no malfunction is detected in the wiring or the Charge Air Pressure Sensor -G31- :

-- Replace the Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248-. Refer to DIESEL DIRECT FUEL INJECTION ECM, REPLACING .

-- Assembly is performed in the reverse of the removal.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
