Special Tools

Special tools and workshop equipment required

• Thrust Piece T10148
• Spindle from Seal Installer Set - Rear Diff 3066
• Additional Part for VW 771 VW 771/37
• Punch VW 408 A
• Thrust Piece VW 473
• Press Support R & I Wheel Brg's 3144
• Thrust Pad 2007
• Torque Wrench (40-200 Nm) V.A.G 1332
• Slide Hammer-Complete Set VW 771
  Fig 1: Identifying Slide Hammer VW 771

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece T10160
  Fig 2: Identifying Thrust Piece T10160

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Subframe Support Assembling Device 3253/2
  Fig 3: Identifying Alignment Fixture 3253/2

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 4: Identifying Special Tools -- Differential, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Dial Gauge Holder VW 387
• Magnetic Plate 50 mm Dia. VW 385/17
• Punch VW 407
• Thrust Pad 30 - 205
• Torque Wrench (5-50 Nm) V.A.G 1331
• -1- Kukko Extractor 46-58 mm 21/7
• -4- Kukko Support 22/2

Fig 5: Identifying Special Tools -- Differential, Disassembling And Assembling

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

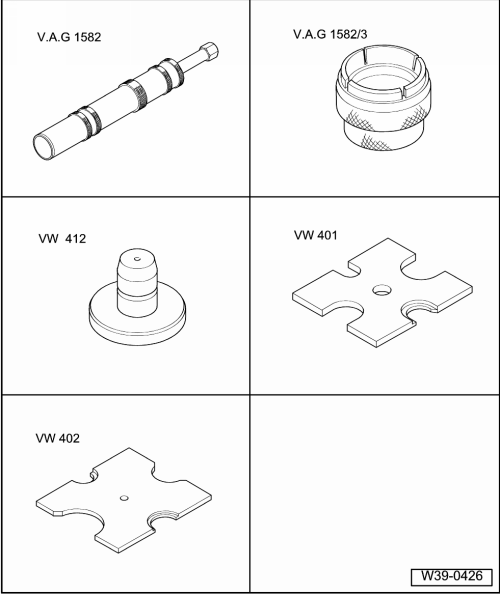

Special tools and workshop equipment required

• Taper Roller Bearing Puller V.A.G 1582
• Attachment to VAG 1582 V.A.G 1582/3
• Thrust Disc VW 412
• Thrust Plate VW 401
• Thrust Plate VW 402
