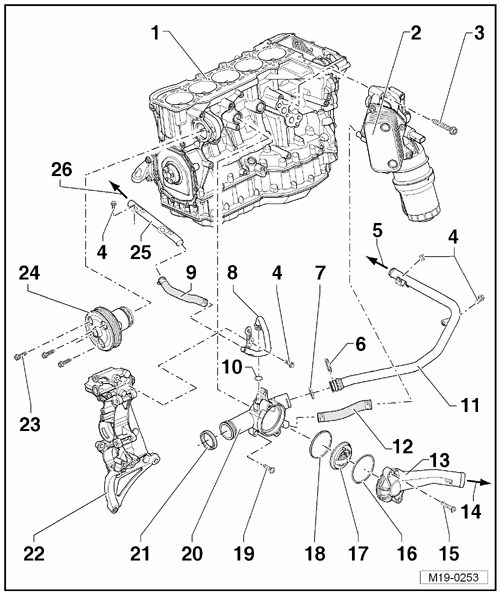

Fig 1: Identifying Cooling System Components Overview, Engine Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Cylinder Block
2. Oil Cooler
3. Bolt
   • 25 Nm
4. Bolt/Nut
   • 10 Nm
5. to the Bottom Heater Core Connection
6. Retaining Clip
7. O-ring
   • Always replace.
8. Front Coolant Line
9. Connecting Hose
10. O-ring
    • Always replace.
11. Coolant Line
12. Connecting Hose
13. Thermostat Housing Cover
14. to the Bottom Radiator Connection
15. Bolt
    • 5 Nm
16. O-ring
    • Always replace.
17. Coolant Thermostat
    • Removing and installing, refer to COOLANT THERMOSTAT .
    • Note the installed position:

      The valve must be at the top

    • Checking (coolant thermostat installed):

      Refer to "Guided Functions" in the vehicle diagnostic tester.

    • Checking (coolant thermostat removed):

      Heat up the thermostat in water.

      Starts to open: approximately 87 °C (188.6 °F) Opening ends: approximately 102 °C (215.6 °F) opening distance: minimum 7 mm

18. Seal
    • Always replace.
19. Bolt
    • 25 Nm
20. Coolant Thermostat Housing
21. Seal
    • Always replace.
22. Accessory Bracket
23. Bolt
    • 10 Nm
24. Coolant Pump
    • With a integrated silicone seal for the cylinder block.
    • Removing and installing, refer to COOLANT PUMP .
25. Right Coolant Line
    • Secured to the engine mount.
26. to the Bottom Expansion Tank Connection
