Special Tools

Special tools and workshop equipment required

• Holding Plate VW 309
• Transmission Support VW 353
• Needle Bearing Drift VW 295
• Driving Sleeve VW 244 B
• Hot Air Blower V.A.G 1416
• Support Bridge T10323
• Subframe Support Assembling Device 3253/7
• Thrust Pad Con. 8/65 VW 433
• Thrust Piece 40 - 105
• Puller T10408
• Needle Bearing Drift VW 295 A
• Thrust Pad VW 447 H
• Thrust Pad VW 512
• Press Tube 2040
• Thrust Tube VW 454
• Seal Installer Set - Rear Differential 3066
• Thrust Pad 3124
• Slide Hammer-Complete Set VW 771
• Additional Part for VW 771 VW 771/37
• Connecting Pin T10027 A
  Fig 1: Identifying Connecting Pin T10027 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clamp Pliers V.A.G 1275
  Fig 2: Identifying Hose Clamp Pliers V.A.G 1275

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pin 3282/29
  Fig 3: Identifying Pin 3282/29

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support Basic Set T40091
  Fig 4: Identifying Engine Support Basic Set T40091

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Block T10083
  Fig 5: Identifying Pressing Support T10083

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• -1- 2-Arm Puller 20/10
• -2- Kukko Puller (80-210 mm) 18/1 (quantity: 2)
  Fig 6: Identifying Kukko Tools

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Inductive Heater VAS 6414
  Fig 7: Identifying Inductive Heater VAS 6414

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece T10148
  Fig 8: Identifying Thrust Pad T10148

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece T10203
  Fig 9: Identifying Thrust Piece T10203

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Sleeve VW 423
  Fig 10: Identifying Sleeve VW 423

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pry Lever - Rmv Outside Mirror 80-200
  Fig 11: Identifying Pry Lever - RMV Outside Mirror 80-200

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Assembly Mandrel 10 - 508
  Fig 12: Identifying Assembly Drift 10 - 508

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Spring Strut Compressor 2070
  Fig 13: Identifying Tensioning Device 2070

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 14: Identifying Special Tools -- Transmission (Golf Plus), Removing And Installing (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine Support Bridge 10 - 222 A
• Engine Support Feed10 - 222 A/8
• Additional Hooks 10 - 222 A/2
• Engine Support Adapter10 - 222 A/3
• Transmission Support 3282
• Adapter 10 - 222 A/16

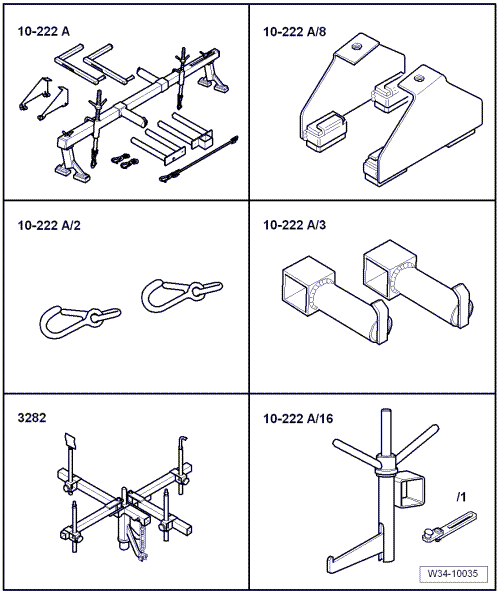

Fig 15: Identifying Special Tools -- Transmission (Golf Plus), Removing And Installing (2 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Adjustment Plate 3282/39
• Engine/Transmission Jack V.A.G 1383A
• Torque Wrench (5-50 Nm) V.A.G 1331
• Torque Wrench (40-200 Nm) V.A.G 1332
• Transmission Support Jig 3336

Fig 16: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Bracket 30-211A
• Driving Sleeve 32 - 111
• Thrust Piece T10030/4
• Tube 37 mm Dia. VW 416 B
• Puller T10309
• Two Arm Puller T10040
• Puller Legs with Thrust Piece T10040/2A+/3

Fig 17: Identifying Special Tools -- Selector Forks, Disassembling And Assembling (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Thrust Plate VW 402
• Subframe Support Assem. Device 3290
• Assembly Tool 3301
• Thrust Pad 16.5/28 mm Dia. VW 431
• Sleeve VW 472/2
• Drift10 - 206
