Rear lights - Golf, assembly

WARNING: This page is about a different variant/trim than selected.

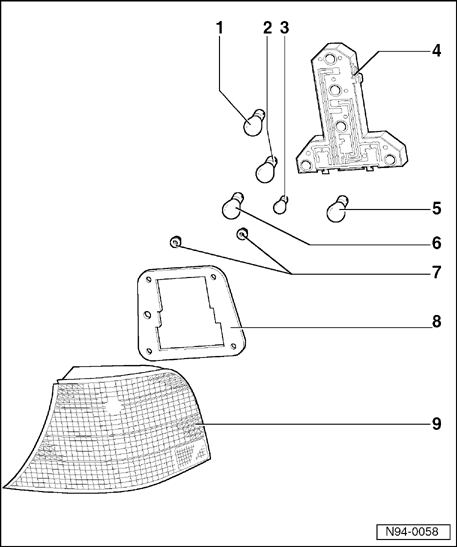

Fig 1: Exploded View Of Rear Lights (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Brake Light bulb -M9- / -M10-

12V / 21W

2 - Turn Signal bulb -M6- / -M8-

12V / 21W

3 - Tail Light bulb -M2- / -M4-

12V / 10W

4 - Bulb holder

Fig 2: Exploded View Of Rear Lights (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

5 - Back-Up Light bulb -M16- / -M17-

12V / 21W

6 - Rear Fog Light Bulb -L20-

12V / 21W

Where applicable - left side only

7 - Hex nuts M5

Qty. 3

8 - Gasket

9 - Housing
