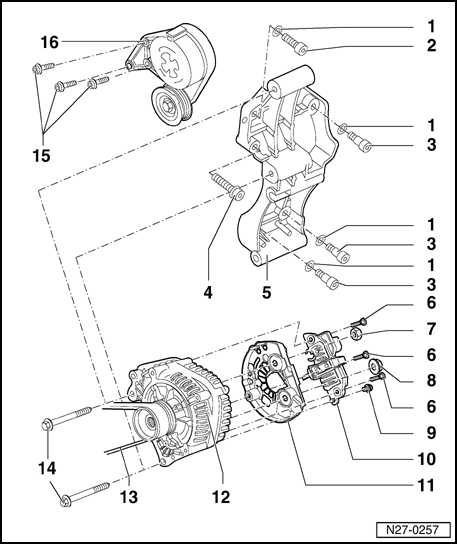

6-cylinder engines from 05.99, assembly

1 - Washers

2 - Hex socket bolt

• M8 x 30mm
• 25 Nm

3 - Hex socket bolt with shoulder

• M8 x 28mm
• 25 Nm

4 - Hex socket bolt

• M8 x 30mm
• 25 Nm

5 - Bracket

6 - Screws

7 - Nut

• M8

8 - Nut

• M8

9 - Screw

10 - Voltage Regulator (VR)

• Removing and installing. Refer to Voltage Regulator (VR), removing and installing
• Checking carbon brushes. Refer to Generator (GEN) carbon brushes, checking

11 - Protective cap

12 - Generator (GEN)

• Tightening torque B+ wire to generator. Refer to Generator (GEN) B+ & D+ connections, securing
• To remove generator, first remove A/C compressor (without opening refrigerant circuit)

Refer to 87 - AIR CONDITIONING

13 - Ribbed belt

• Removing and installing. Refer to Ribbed belt, removing and installing  .
• Ribbed belt routing. Refer to Ribbed belt, routing

14 - Hex bolts

• M8 x 85mm
• 25 Nm

15 - Hex socket bolts

• M8 x 30mm
• 25 Nm

16 - Tensioner
