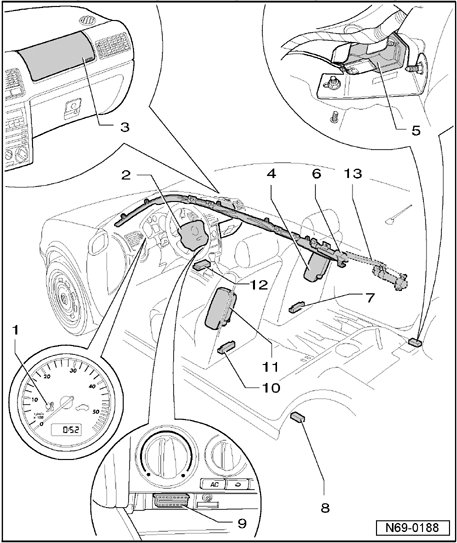

Airbag system component locations (Golf)
WARNING: This page is about a different variant/trim than selected.
1 - Airbag malfunction indicator lamp (MIL) -K 75-
2 - Driver airbag unit
- Removing, three-spoke steering wheel → Drivers side airbag unit, removing and installing (Three-spoke steering wheel)
- Removing, four-spoke steering wheel → Driver side airbag unit, removing and installing (Four-spoke steering wheel)
3 - Front passenger airbag unit
- Removing, instrument panel with airbag seam → Front Passengers airbag unit (Instrument panel with airbag seam), removing and installing
- Removing, instrument panel without airbag seam → Front Passengers airbag unit (Instrument panel without airbag seam), assembly overview
- Adapting components (locking and activating) → Components, adapting under Components, adapting
4 - Side airbag, front passenger side
- Removing → Driver and front passenger seat side airbags, removing and installing
- Adapting components (locking and activating) → Components, adapting under Components, adapting
5 - Right rear side airbag crash sensor
- → Crash sensor for Driver side/Passengers side rear side curtain protection, removing and installing
6 - Driver/passenger head curtain airbag
- Removing, Golf → Side curtain protection (driver and passenger sides) (Golf), removing and installing
- Removing, Golf wagon → Side curtain protection (driver and passenger sides) (Golf wagon/Jetta wagon), removing and installing
7 - Crash sensor for side airbag, passenger side
- Removing → Crash sensor for Driver side/Passenger side - side curtain protection, removing and installing
8 - Left rear side airbag crash sensor
- Removing → Crash sensor for Driver side/Passengers side rear side curtain protection, removing and installing
9 - Data Link Connector (DLC)
10 - Crash sensor for side airbag, drivers side
- Removing → Crash sensor for Driver side/Passenger side - side curtain protection, removing and installing
11 - Side airbag, driver side
- Removing → Driver and front passenger seat side airbags, removing and installing
- Adapting components (locking and activating) → Components, adapting under Components, adapting
12 - Airbag Control Module (J234)
- Removing → Airbag control module -J 234-, removing and installing
- Adapting components (coding) → Components, adapting under Components, adapting
13 - Side curtain airbag on drivers and passengers side (Golf-/Jetta wagon)
