Front Passengers airbag unit (Instrument panel without airbag seam), assembly overview

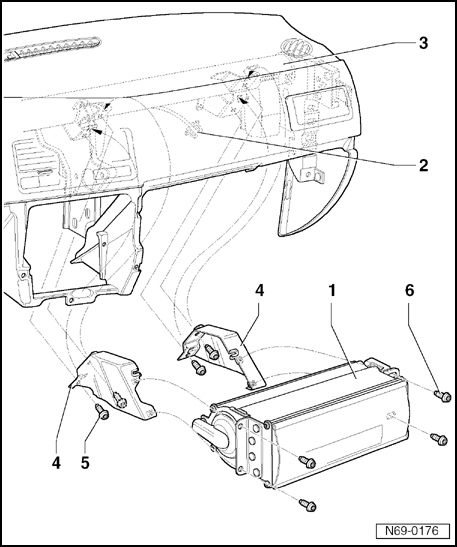

Fig 1: Front Passengers Airbag Unit Assembly Overview (Instrument Panel Without Airbag Seam)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front passenger airbag unit

• Removing → Front Passengers airbag unit (Instrument panel without airbag seam), removing and installing

2 - Connector

3 - Central tube

4 - Supports

• Always replace after airbag has deployed.

5 - Screw

• Qty. 4
• Tightening torque: 2.5 Nm

6 - Screw

• Qty. 4
• Tightening torque: 2.5 Nm
