Bumper cover (Golf R32), assembly overview

WARNING: This page is about a different variant/trim than selected.

NOTE:

Slight changes may have to be made to removal and installation procedures, depending upon equipment installed in vehicle.

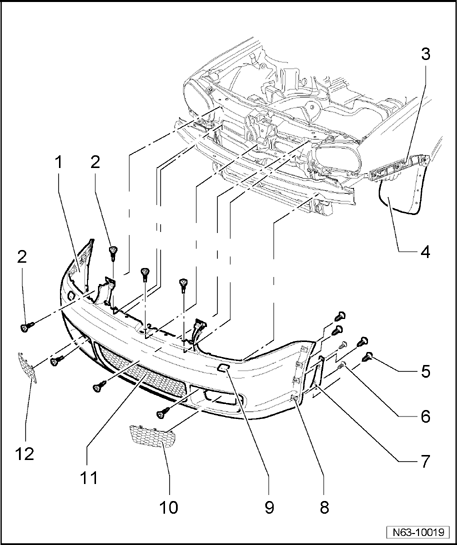

Fig 1: Exploded View Of Bumper Cover (Golf R32)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bumper cover

2 - Bolt

3 - Guide piece

To remove and install, pull out/slide in bumper cover parallel out of guide pieces (left and right sides).

4 - Wheelhousing liner

5 - Bolt

6 - Bolt

7 - Adapter part

With 2 speed nuts
Remove wheel-housing liner before removing adapter part
Removing and installing. Refer to Adapter part (Golf R32), removing and installing

8 - Speed nut

9 - Cover for headlight cleaning system

10 - Left ventilation grid

11 - Center ventilation grid

Secured to bumper cover with clamps
Assembly overview. Refer to Center ventilation grid and air guide (Golf R32), assembly overview
Removal of center ventilation grid only possible with bumper cover removed

12 - Right ventilation grid
