Rear lid (Jetta Wagon), assembly overview
WARNING: This page is about a different variant/trim than selected.

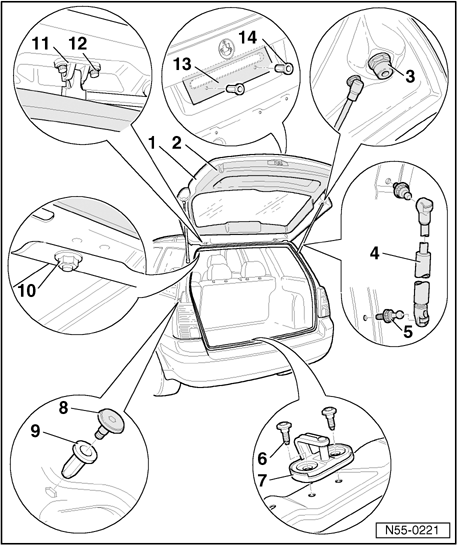

1 - Rear lid
- Adjusting. Refer to Rear lid, adjusting
- Gap dimension Body panel gaps; Body, rear
2 - Trim
- Removing and installing. Refer to 70 - INTERIOR TRIM
3 - Rubber stop
- Adjusting. Refer to Rear lid, adjusting
4 - Gas-filled strut
- Removing and installing. Refer to Gas-filled strut, removing
- Venting gas. Refer to Releasing gas from gas-filled strut
5 - Ball stud
- 10 Nm
6 - Bolt
- 22 Nm
7 - Closure plate
- Adjusting - within elongated holes
- Gap dimension Body panel gaps; Body, rear
8 - Cap
9 - Pop rivet
10 - Hex nuts
- 22 Nm
11 - Hinge
12 - Bolt
- 10 Nm
13 - Identification plate
- Press on only on hatched area
- Replacement part has two foils. First foil covers adhesive surface, second must be removed after installing.
14 - Internally threaded pop rivet
- Tighten using Pop rivet tongs V.A.G 1765 A
