Front wheel bearing, pressing out and pressing in: Notes

WARNING: This page is about a different variant/trim than selected.

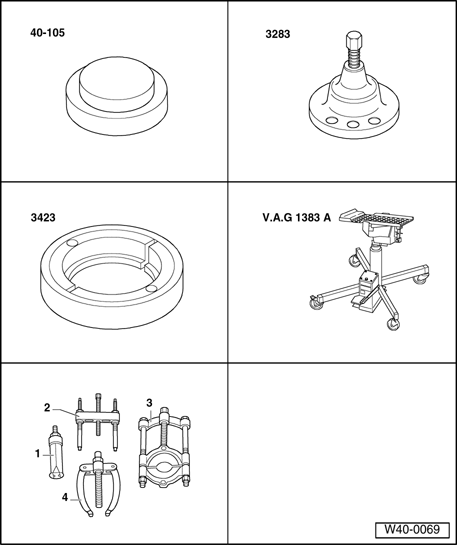

Fig 1: Identifying Special Tools - Front Wheel Bearing, Pressing Out And Pressing In

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Thrust pad 40 - 105
Hub Puller 3283
Collar F/Wheel Brg. Inner Race 3423
Engine/transmission jack V.A.G 1383 A with universal transmission mount V.A.G 1359/2

Special tools, testers and auxiliary items required

Fig 2: Ball Joint Puller 3287 A

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Foot Pump With High Pressure Hose V.A.G 1389 A/1

Courtesy of VOLKSWAGEN UNITED STATES, INC.

If there is a hand pump V.A.G 1389/1 available in the dealership it can be converted to a foot pump.

To do this use the conversion set V.A.G 1389/4.

Special tools, testers and auxiliary items required

Fig 4: Wheel Bearing Tool V.A.G 1459 B

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Supplementary Set V.A.G 1459 B/2

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Suspension Strut Upper Connecting Link Hex Nuts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen upper hex nuts of connecting links from left and right suspension strut.
Pull out clamp on brake hose bracket and release brake hose.
Unhook speed sensor wiring from suspension strut.
Remove brake carrier with brake caliper and hang from body with wire → 46 BRAKES - MECHANICAL COMPONENTS

Fig 7: Pressing Out Ball Joint Using Ball Joint Puller

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Fig 8: Pressing Out Drive Shaft Using Special Tool 3283

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

The axle shaft must not hang down!

The inner joint will be damaged through over-flexing.

NOTE:

Place engine/transmission jack V.A.G 1383/A underneath (danger of accident from falling parts when removing the wheel hub and the wheel bearing).
