Brake pedal from brake booster, disconnecting and connecting
WARNING: This page is about a different variant/trim than selected.
Special tools and equipment
- T 10006 Release tool
- Remove trim under instrument panel.
Refer to TRIM UNDER STEERING COLUMN, REMOVING AND INSTALLING
- Remove screws -1-.
- Remove cover -A-.
- Remove connecting plate between clutch and brake pedals (arrows) on vehicles with manual transmission.
- Remove brake light switch -1-. Refer to Brake light switch, removing and installing/adjusting .
- Press brake pedal in direction of brake booster and hold.

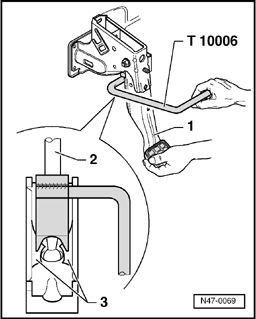

1 - Brake pedal
2 - Push rod
3 - Retaining lugs
- Insert special tool T 10006 and pull in direction of driver's seat, when doing this counter-hold on brake pedal. (At this moment the pedal must not be allowed to move backward). Thereby the mounting retaining lugs -3- will be pressed off the ball head of the push rod -2-.
NOTE:
For ease of illustration separating the brake pedal from the brake booster is shown with the pedal cluster removed.
- Pull special tool T10006 and brake pedal together toward the driver's seat. (Thereby the brake pedal will be pulled off the ball head of the push rod).
Joining brake pedal to brake booster
Fig 5: Holding Push Rod Ball Head In Front Of Mounting And Pushing Brake Pedal In Direction Of Brake Booster
- Hold push rod ball head in front of mounting and push brake pedal in direction of brake booster, so that the ball head audibly locates.
Installation is performed in reverse order.
- Adjust brake light switch. Refer to Brake light switch, removing and installing/adjusting .
