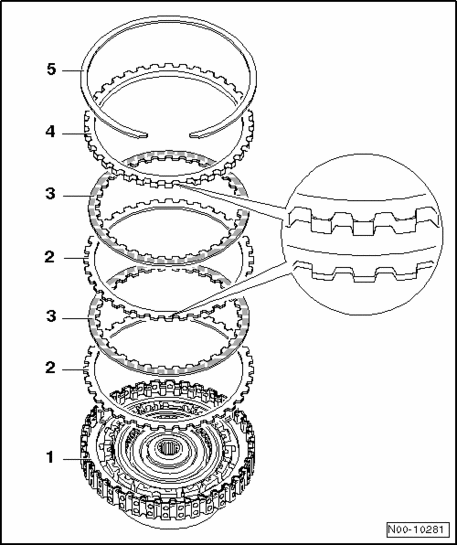

Overview - "K2" Plates
WARNING: This page is about a different variant/trim than selected.
The clutch will now be disassembled for cleaning. No repairs can be made.
1 - Clutch housing "K2/K3"
- Only parts of "K2" are shown here.
- The plates of "K3" are still installed. Removing and installing K3 plates. Refer to "K3" plates, overview .
- Disassembling and assembling clutch housing. Refer to "K2/K3" clutch housing, overview .
2 - Outer plate
3 - Inner plate
4 - Last outer plate pressure plate
- Thicker than the other outer plates.
5 - Retaining ring
- Ring will not be replaced. Therefore, remove and install carefully, being careful not to over-stretch it.
