"K3" Plates, Overview

The clutch will now be disassembled for cleaning. No repairs can be made.

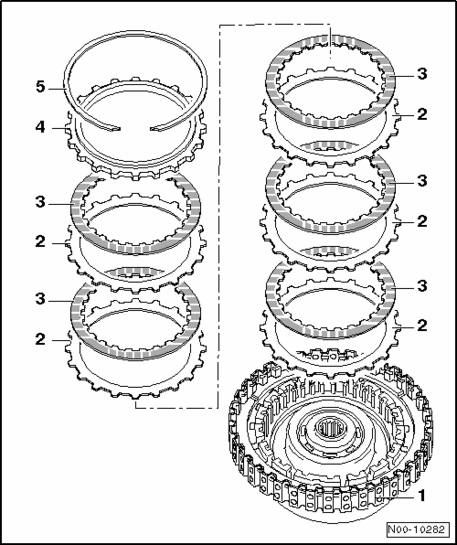

Fig 1: Exploded View Of "K3" Plates

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Clutch "K2/K3"

• Only parts of "K3" are shown here.
• The plates of "K3" are already removed.
• Disassembling and assembling clutch housing. Refer to "K2/K3" clutch housing, overview  .

2 - Outer plate

3 - Inner plate

4 - Last outer plate pressure plate

• Thicker than the other outer plates.
• The smooth side faces the plates.

5 - Retaining ring

• Ring will not be replaced. Therefore, remove and install carefully, not over-stretching it with force.
