EVAP Canister

WARNING: This page is about a different car, the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Torque Wrench (5-50 Nm) V.A.G 1331

Removing

-- Read the safety precautions before starting. Refer to SAFETY PRECAUTIONS .

-- Pay attention to the rules of cleanliness. Refer to CLEAN WORKING CONDITIONS .

-- Remove the cover bolts -arrows- and cover from under the spare tire wheel well.

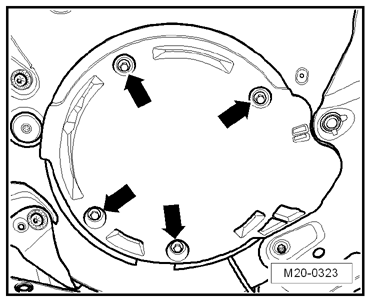

Fig 1: View Of Removing Cover Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connecting line -1-.

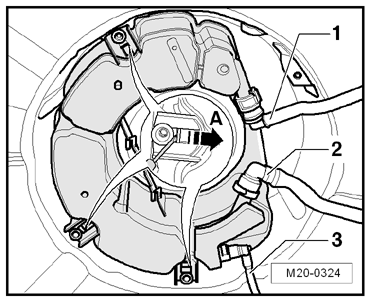

Fig 2: Identifying The Connecting Line

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the vent lines -2 and 3-.

NOTE:

Press the securing rings to disengage the lines.

-- Using a screwdriver, release the retaining tabs -A- and remove the Evaporative Emission (EVAP) canister.

Installing

Install in reverse order of removal. When doing this note the following:

Tightening specifications, refer to EVAP SYSTEM COMPONENT OVERVIEW .

The lines -1 through 3- must engage audibly.

Fig 3: Identifying The Connecting Line
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
