EVAP System Component Overview
WARNING: This page is about a different car, the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

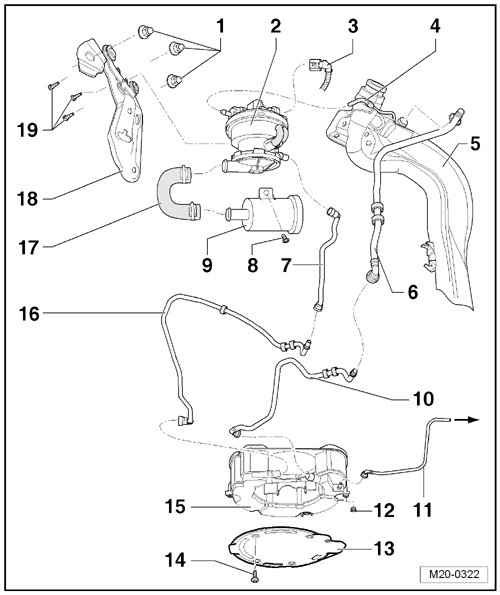

- Nut
- 6 Nm
- Leak Detection Pump -V144-
- Installed location: In the right rear wheel housing.
- EVAP system schematic overview. Refer to EVAP SYSTEM SCHEMATIC OVERVIEW .
- Checking the vacuum supply for the Leak Detection Pump (LDP). Refer to Leak Detection Pump -V144- VACUUM SUPPLY, CHECKING .
- Removing and installing, refer to Leak Detection Pump -V144- .
- Checking the fuel supply system for leaks. Refer to FUEL SYSTEM, CHECKING FOR LEAKS .
- Fuel system leak test. Refer to FUEL SYSTEM LEAK TEST .
- Connector
- Vacuum Line
- To the vacuum pump.
- Make sure it is secure.
- Filler Tube
- Fuel tank and attachments overview. Refer to FUEL TANK AND ATTACHMENTS OVERVIEW .
- Vent Line
- Behind the right rear wheel housing liner.
- Make sure it is secure.
- To disconnect, press the release button on the connection piece.
- Connecting Line
- Behind the right rear wheel housing liner.
- Make sure it is secure.
- Bolt
- 3 Nm
- Air Filter Housing
- For the LDP.
- Vent Line
- On the underbody.
- Make sure it is secure.
- Push in the securing ring to disconnect.
- Vent Line
- To the EVAP canister purge regulator valve 1 -N80-
- Make sure it is secure.
- Push in the securing ring to disconnect.
- Spacer Sleeve
- Cover
- For the EVAP canister.
- Bolt
- 8 Nm
- EVAP Canister
- Installed location: In the bottom of the spare tire wheel well.
- EVAP system schematic overview. Refer to EVAP SYSTEM SCHEMATIC OVERVIEW .
- Removing and installing, refer to EVAP CANISTER .
- Connecting Line
- On the underbody.
- Make sure it is secure.
- Push in the securing ring to disconnect.
- Connecting Hose
- Make sure it is secure.
- Bracket
- For the LDP.
- Bolt
- 2 Nm
