Coolant Pipes

Special tools and workshop equipment required

• Spring type clip pliers VAS 5024A

Removing

-- Remove the engine cover/upper air filter housing. Refer to ENGINE COVER/UPPER AIR FILTER HOUSING .

Fig 1: Identifying Pipe And Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pipe -A- and hose -B- bolts -arrows-.

-- Remove the intake air guide with the coolant fans. Refer to COOLANT FAN AND COOLANT FAN 2 .

-- Disconnect the electrical connector from the charge air pressure sensor -3-.

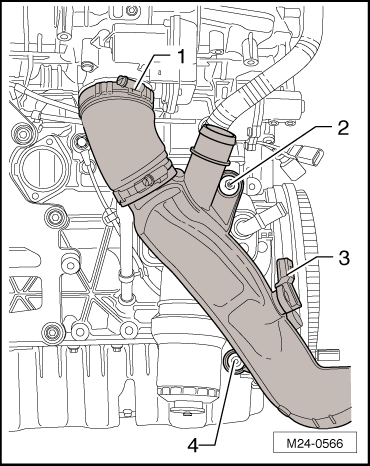

Fig 2: Identifying Charge Air Pressure Sensor G31, Bolts & Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the charge air pipe bolts -2 and 4-.

-- Loosen the clamp -1-, disconnect the quick release coupling on the charge air cooler and remove the charge air pipe with the hose downward.

-- Drain the cooling system. Refer to DRAINING AND FILLING .

-- Disconnect the electrical connectors -arrow-.

Fig 3: Identifying Electrical Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the coolant hoses -arrows- from the coolant pipes.

Fig 4: Identifying Coolant Hoses From Coolant Pipes

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the hose -A- and remove the bolt -B-. Remove the front coolant pipe.

Fig 5: Identifying Front Coolant Pipe Hose And Removing Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the electrical connector -A- from the bracket, disconnect the hose -B- and remove the bolts -C-. Remove the rear coolant pipe.

Fig 6: Identifying Rear Coolant Pipe Connector, Hose And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Installation is performed in reverse order.

-- Tighten the coolant pipe bolts.

• Tightening specification: 5 Nm.
