Fog lamps, assembly

Tightening torques → Fog lamps, tightening torques

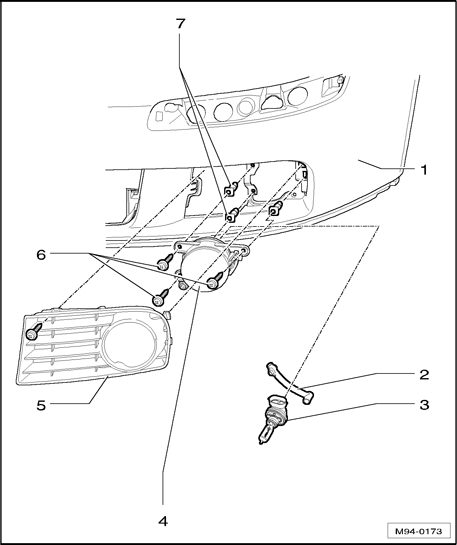

Fig 1: Fog Lamps, Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front bumper cover

2 - Ventilation hose

3 - Left Front Fog Lamp L22 and Right Front Fog Lamp L23

• Lamp bulb H11 12 V, 55 W
• Removing and installing → Fog Lamp Bulb L22 / L23, eplacing

4 - Fog lamp housing

• Removing and installing → Fog lamp housing, removing and installing:

5 - Cover

6 - Screws

7 - Expanding nuts
