Accessory Bracket

WARNING: This page is about a different car, the 2010 Volkswagen Jetta and 2009 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Bridge 10 - 222 A

Removing

-- Remove the engine mount bracket. Refer to ENGINE MOUNT AND BRACKET .

-- Remove the high fuel pressure pump. Refer to HIGH PRESSURE FUEL PUMP .

-- Remove the generator. Refer to Removal and Installation .

WARNING:

The Air Conditioning (A/C) refrigerant circuit must not be opened.

-- Unbolt the A/C compressor from the accessory bracket and secure it to the lock carrier.

-- Remove the idler roller bolts -1 and 2- and remove the bolt -arrow- for the toothed belt guard.

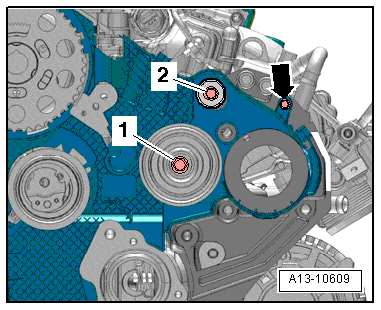

Fig 1: Identifying Idler Roller Bolts -1 And 2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -6 through 1- and remove the accessory bracket.

Fig 2: Identifying Bolt Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Installation is performed in reverse order. When doing this note the following:

Make sure there are alignment sleeves inside the accessory bracket and replace any that are missing.
Replace the bolts which have been tightened to a torque angle.

-- Tighten the bolts in sequence -1 through 6-. Tightening specification, see -item 5- in the RIBBED BELT OVERVIEW .

Fig 3: Identifying Bolt Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the generator. Refer to Removal and Installation .

-- Install the high pressure fuel pump. Refer to HIGH PRESSURE FUEL PUMP .

-- Install the engine mount bracket. Refer to ENGINE MOUNT AND BRACKET .
