Overview of components to adjust planet carrier
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When adjusting planet carrier, install components in housing without shim -17-.

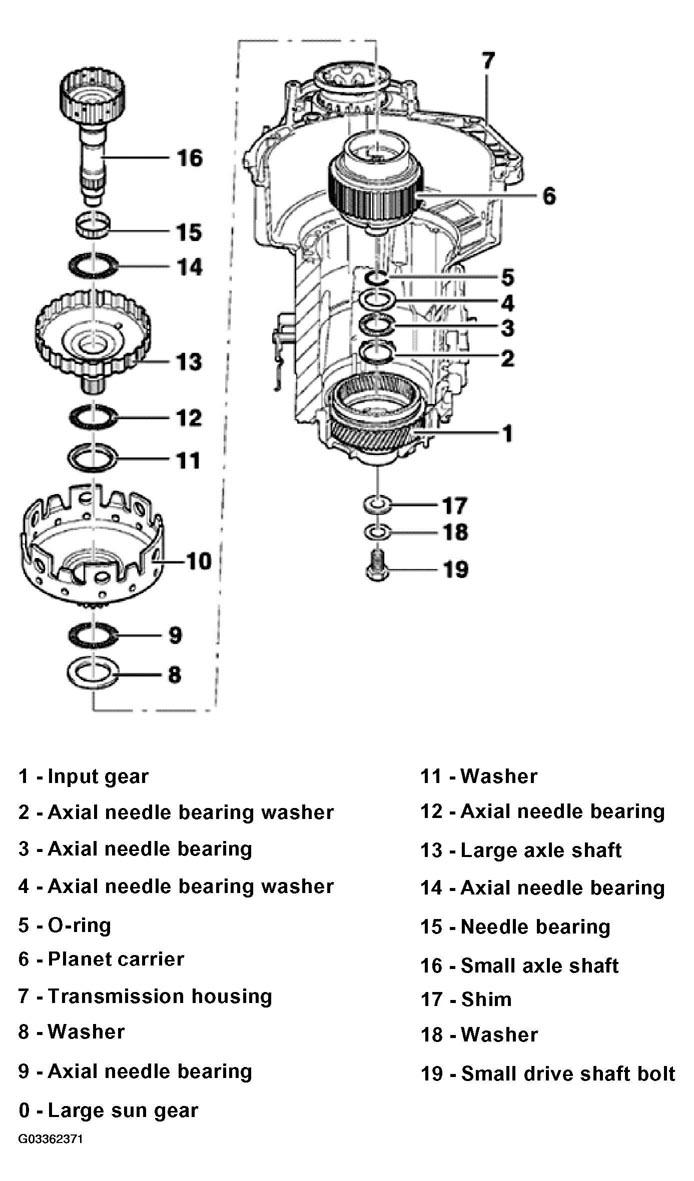

The following list pertains to Fig 1.
- Input gear
- Do not remove to adjust planet carrier
- Input gear or axial needle bearing for planet carrier, removing and installing, see INPUT GEAR, REMOVING AND INSTALLING
- - Axial needle bearing washer
- Install smooth side in input gear
- Axial needle bearing
- Axial needle bearing washer
- O-ring
- Insert into planet carrier, see TRANSMISSION, ASSEMBLING .
- Planet carrier
- Transmission housing
- With input gear and axial needle bearing
- Axial needle bearing remains in input gear
- If axial needle bearing is damaged, see INPUT GEAR, REMOVING AND INSTALLING
- Washer
- Axial needle bearing
- Large sun gear
- Washer
- Insert into large sun gear, see TRANSMISSION, ASSEMBLING
- Axial needle bearing
- Large axle shaft
- Axial needle bearing
- Needle bearing
- - Small axle shaft
- Shim
- Do not install in planet carrier when adjusting
- Washer
- Small drive shaft bolt
- 30 N.m (22 ft lb)
