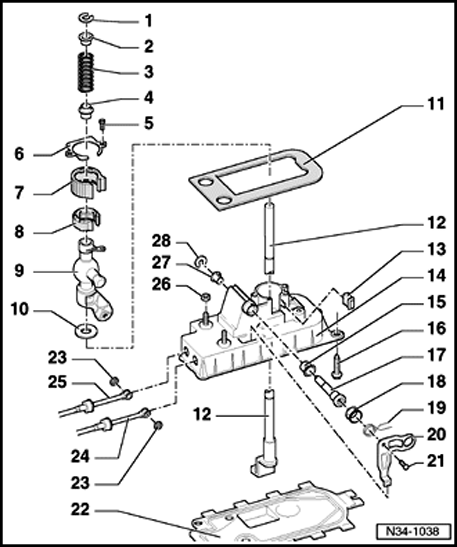

Shift Lever And Shift Lever Housing, Servicing: Notes

1 - Circlip

• Removing and installing. See Figure

2 - Bushing

3 - Spring

4 - Bushing

5 - Torx screw, 5 Nm

6 - Cover plate

7 - Damper

8 - Bearing shell

9 - Gear shift guide

10 - Damping washer

11 - Gasket

• Between shift housing and floor
• Self-adhesive
• Bond to shift lever housing

12 - Transmission shift lever

13 - Damper

14 - Shift housing

15 - Bushing

16 - Bolt, 25 Nm

17 - Fulcrum pin

18 - Guide bushing

19 - Spring

• Installing. See Figure

20 - Gate selector bracket

21 - Torx screw, 5 Nm

22 - Base plate

• Open tabs to remove
• Replace

23 - Lock washer

24 - Gate selector cable

• On gate selector bracket
• Installed position. Refer to Installed position of gear selector mechanism

25 - Gear selector cable

• Press onto gear shift guide
• Installed position. Refer to Installed position of gear selector mechanism

26 - Hex nut, 25 Nm

27 - Bushing

• Only installs in one position

28 - Lock washer
