Accessory Drive And Cylinder Block Overviews: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Jetta, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If large quantities of metal particles or abraded material are detected during engine repairs, it may mean the crankshaft or rod bearings are damaged. To prevent further damage, perform the following steps after the repair:

Clean the oil passages.

Replace the oil spray jets.

Replace the oil cooler.

Replace the oil filter.

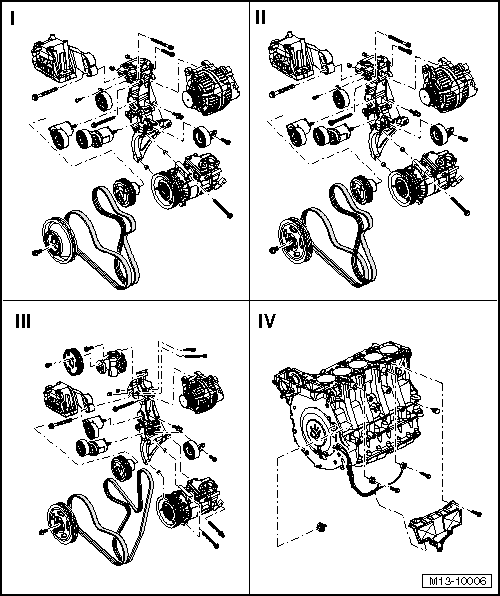

Fig 1: Identifying Accessory Drive And Cylinder Block Overviews (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

- Jetta from MY 05 through 07, with engine codes BGP and BGQ ACCESSORY DRIVE
- Jetta from MY 08 through 10, Jetta SportWagen (US)/Jetta Wagon (Canada) for MY 09 and Jetta SportWagen (US)/Golf Wagon (Canada) from MY 10, with engine codes CBTA and CBUA ACCESSORY DRIVE
- Jetta from MY 11
- ENGINE, REAR

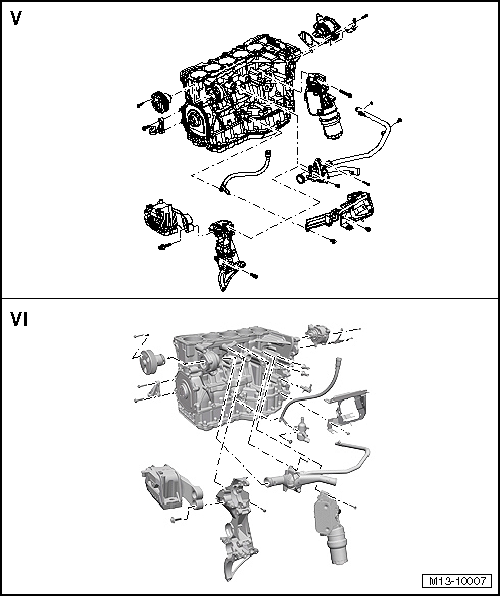

Fig 2: Identifying Accessory Drive And Cylinder Block Overviews (2 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

- Jetta from MY 05 through 10, Jetta SportWagen (US)/Jetta Wagon (Canada) for MY 09 and Jetta SportWagen (US)/Golf Wagon (Canada) from MY 10 ENGINE, FRONT AND SIDE
- Jetta from MY 11
