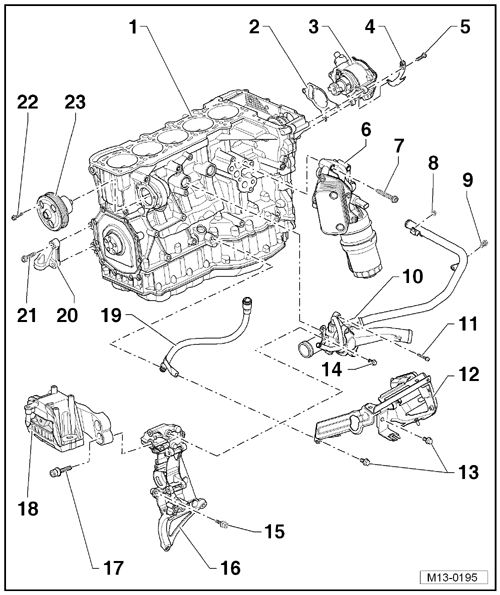

Engine, Front And Side
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Jetta, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Cylinder Block
- Gasket
- Always replace.
- Vacuum Pump, for the Brake Booster
- Do not open.
- Removing and installing, refer to BRAKE BOOSTER VACUUM PUMP .
- Bracket
- Bolt
- 10 Nm
- Oil Filter Bracket
- Overview, refer to OIL FILTER BRACKET WITH ATTACHMENTS OVERVIEW .
- Bolt
- 25 Nm
- Bolt
- 10 Nm
- Bolt
- 10 Nm
- Thermostat Housing
- With the thermostat and coolant pipe.
- Bolt
- 10 Nm
- Intake Manifold Support
- For engines with a Secondary Air Injection (AIR) system only.
- Bolt
- 25 Nm
- Bolt
- 10 Nm
- Bolt
- 25 Nm
- Accessory Bracket
- Bolt
- 40 Nm + 90° (1/4) additional turn.
- Always replace.
- Engine Mount
- Guide Tube
- For the oil dipstick.
- Transport Strap
- Not needed for service.
- Bolt
- 25 Nm
- Bolt
- 10 Nm
- Coolant Pump
- With a integrated silicone seal for the cylinder block seal.
- Removing and installing, refer to COOLANT PUMP .
